Description

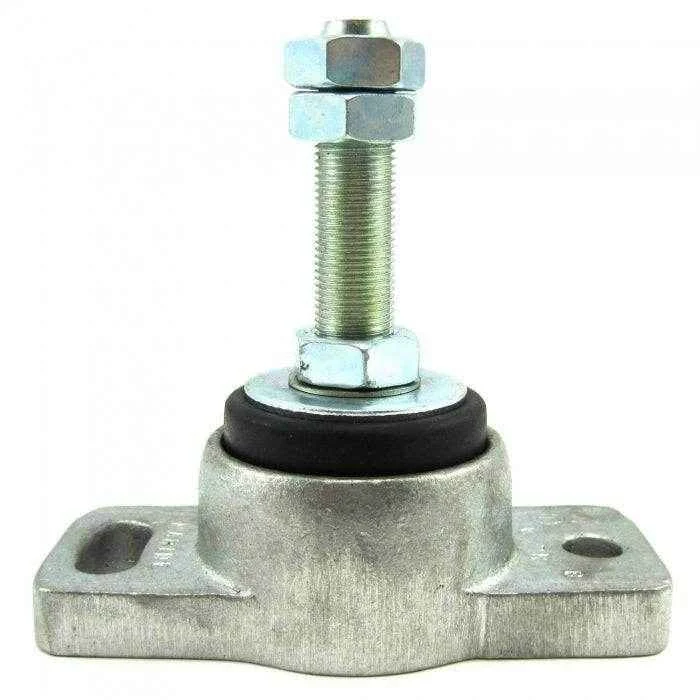

5/8 in. Stud Rubber Cushion Engine Mount | Barr 8-0001

Cast aluminum base mount with single rubber cushion is designed for mounting marine engines or transmissions.

• Rubber engine mount
• 5/8″-18UNF stud size
• 5 in. base length
• 1 3/4 in. base width
• 4 1/2 in. overall height from base to top of stud
• 4 in. length from bolt hole center to bolt hole center
• 7/16 in. hold down bolt size
• 2 3/8 in. shaft length from top of shaft to base nut
• Adjustable both vertically and horizontally to assist with alignment
• 350 lbs. capacity per mount
• Rubber cushions are locked to the base
• Rubber is oil and fuel resistant
• Replaces Osco DF-206
