Description

600 W

Airmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16″) extending outside of the hull.

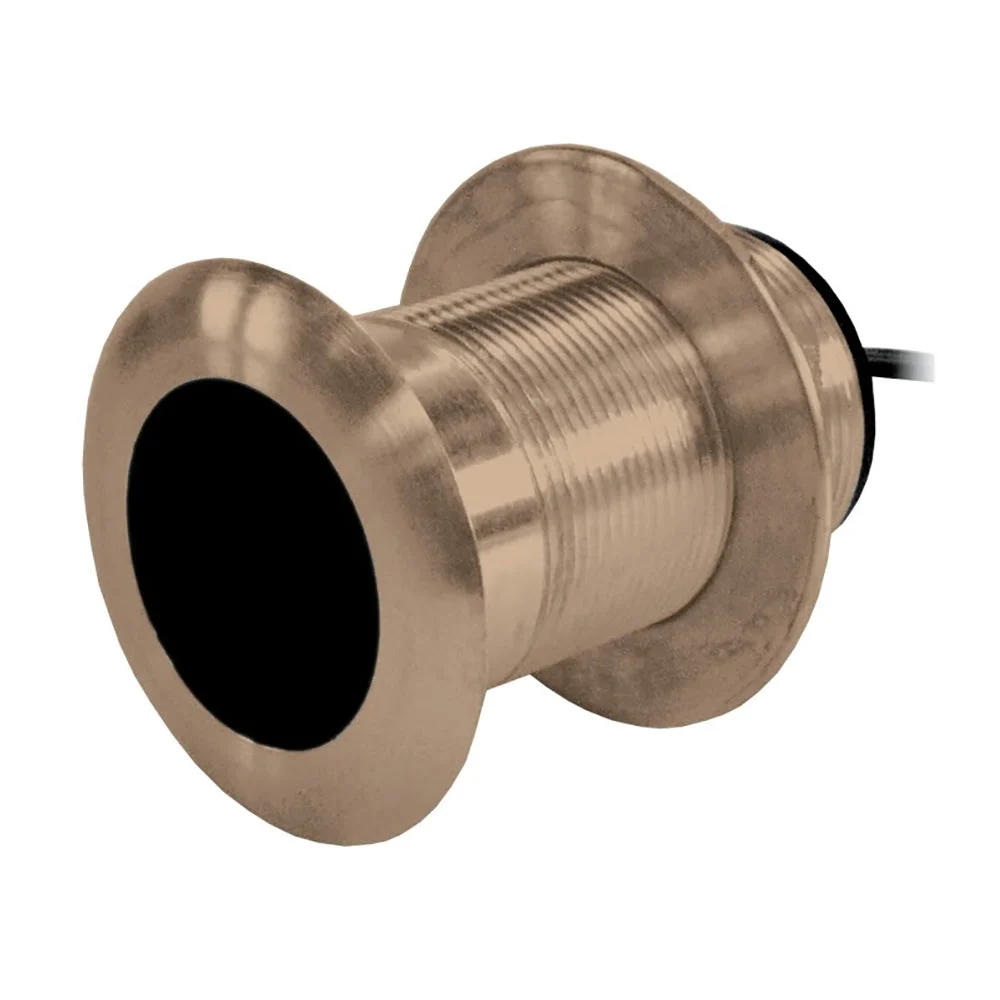

B117 Bronze 0° Depth & Temp with Ray Connector for CP370 & DSM300

The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5 mm (3/16″) extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.

Features:

• Bronze Housing
• Depth and Temperature Only
• Usable Shaft Length: 66.5 mm (2.62”)
• Replacement nut—405
• 10 m (33’) cable length
• Boat Size: 8 m (25’) and up
• Ideal for center-console and trailered boats
• Frequency: 50/200 kHz
• Maximum Depth Range:
  • 50 kHz: 800-1200 ft
  • 200 kHz: 400-700 ft
• Cone: 50 kHz—45°, 200 kHz—12°
• RMS Power: 600 W

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
B117 has 0° depth and temperature bronze color for ray connectors of CP370 and DSM300. B117 has our 50/200 kHz dual frequency single ceramic element in a thin housing. The nearly flush design enables…

• Depth only or depth and fast-response water-temperature sensing
• 600 W of power
• Dual-frequency element:
• 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200′)
• 200 kHz with a 12° beamwidth for depth performance to 206 m (700′)
• Right-angle cable exit saves space and protects transducer if stepped on
• Included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Low-profile, bronze housing has minimal drag
• Plastic (P319) and stainless steel (SS60) models are also available to accommodate all hull materials

SKU: NVN-85726
MPN: B117-DT-RAY
UPC:
