Description

300 W

Airmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.

This Tilted Element transducer has the ceramic element fixed at either a 12° or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The B75L is available in two Tilted Element models:

• Fixed 12° tilted version for 0 to 24° hull deadrise angles
• Fixed 0° tilted version for 0 to 7° hull deadrise angles

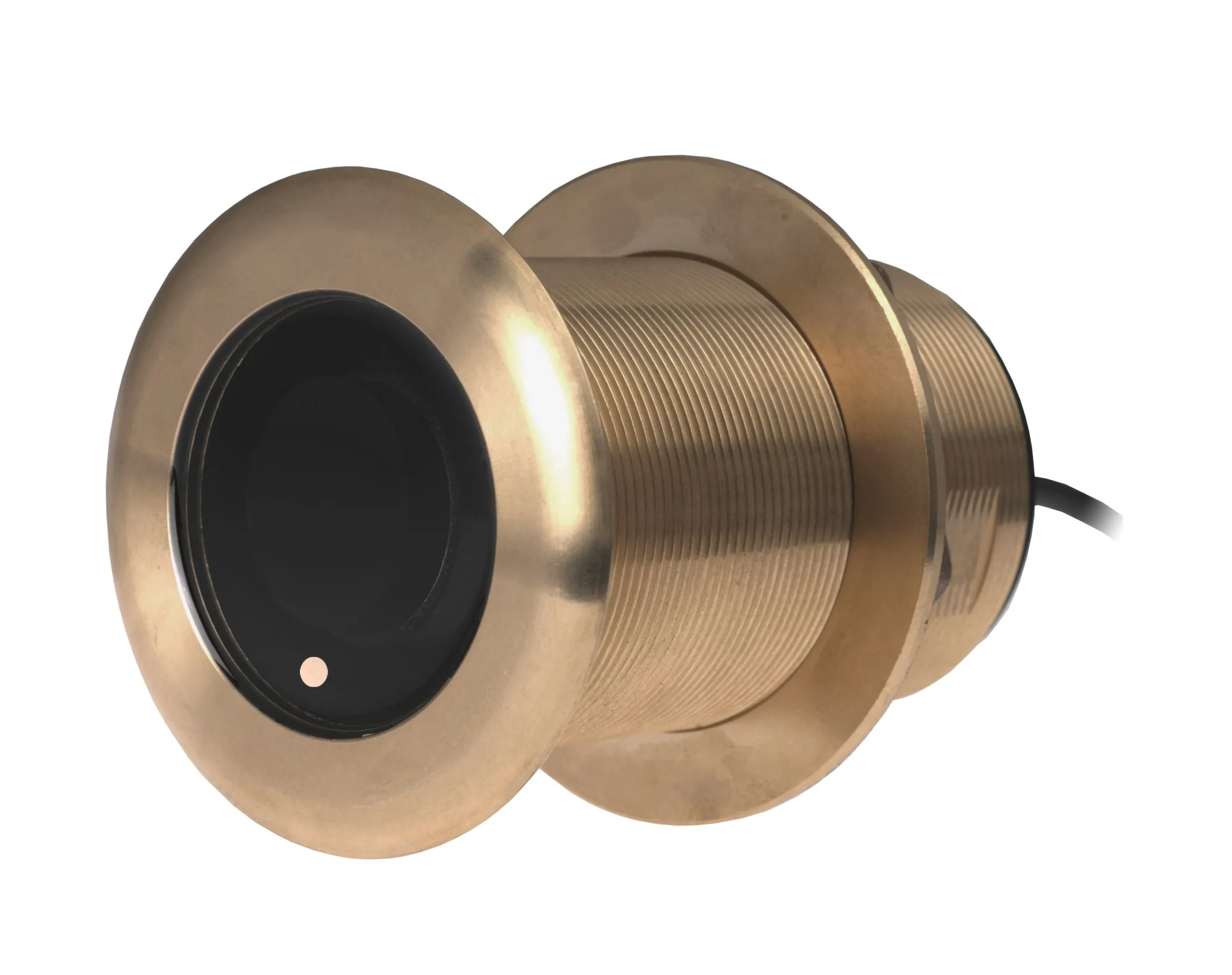

Airmar B75C-12-L 12d Tilt

Low CHIRP

Model: B75C-12-L-MM

• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
• Available in 0° and 12° tilted versions
• 20 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth
• Bronze transducer housing
• Boat Size: Up to 11 m (36’)
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Sound waves will not present as clear a picture of the bottom on the display, but will sound down in very deep areas where high frequency sound waves cannot reach

Provides greater depth range, wider beamwidth, and ultimately more coverage under the boat

Chirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noise

Great for operating at high boat speeds

Specifications

Hull Deadrise	Up to 24°
Acoustic Window	Urethane
Weight	1.4 kg (3 lb)

What’s in the Box:

• B75C-12-M-MM

Airmar B75C-12-L 12d tilt low CHIRP model: B75C-12-L-MM depth and fast response water temperature sensor Low-CHIRPS from 40 k Hz to 75 k Hz, beam width 32° to 21° is available in. ..

• Depth and fast-response water-temperature sensing
• 300 W of power with a maximum depth of 353 m (1200′)
• Low frequency: 40 to 75 kHz
• 32° to 21° beamwidth
• Great deep-water performance
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull
• Also available in a stainless steel housing (SS75L) for use with all hull materials
• Patented Xducer ID technology

SKU: NVN-1000120
MPN: B75C-12-L-MM
UPC:
