Description

Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat is essential down to 152 m (500′).

The low-frequency band is rated to 3 kW and produces amazing deep-water performance to 3,048 m (10,000′). Get the best of both worlds with Airmar’s dual-frequency, Chirp-ready transducer with wide-beam coverage.

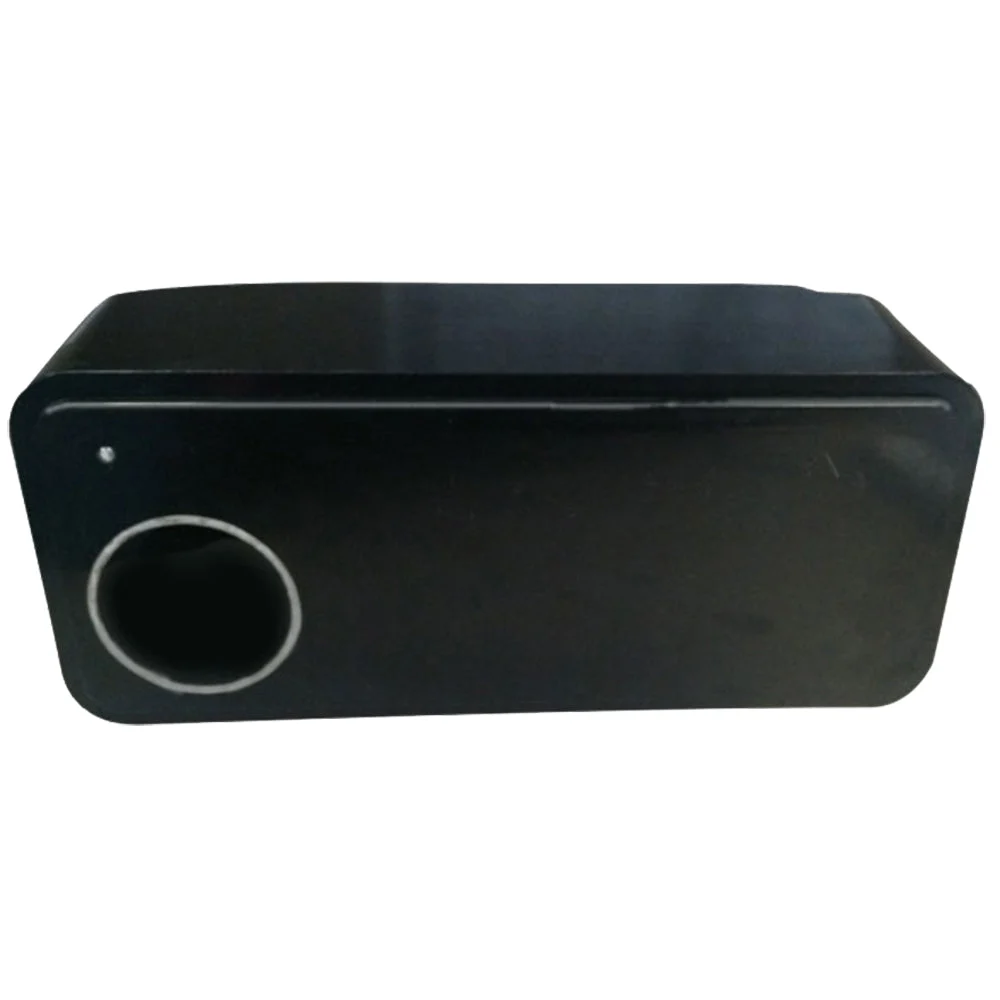

CM599C-LHW Chirp Wide Broadband – No Connector – Bare Wires

Features:

• Pocket/Keel mount wide-beam model with 3000W power rating
• Depth and fast-response water temperature sensor
• Wide-beam model with 25° constant beamwidth in High band and 9°-23° beamwidth in Low band
• With Low (28-60kHz) and High (150-250kHz) frequency bands

CM599C-LHW Linear Frequency Modulation Broadband-No Connector-Bare Wire Function: Pocket/keel installation of rated power 3000W wide beam model depth and fast response water temperature sensor wide beam model, the beam width is constant at 25°, in the high frequency…

• Depth and fast-response water-temperature sensor
• 3 kW for superior deep-water performance
• 3 kW low frequency: 28 to 60 kHz
  • 23° to 9° port-starboard beamwidth
  • 11° to 5° fore-aft beamwidth
  • Maximum depth performance to 3,048 m (10,000′)
• 1 kW high frequency: 150 to 250 kHz
  • 25° constant beamwidth
  • Maximum depth of 152 m (500′)
• 132 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Urethane housing with Curved-edge Design for wet-box installation
• Also available as an external (R509LHW) mount
• Exclusive Xducer ID technology

SKU: NVN-71189
MPN: CM599C-LHW
UPC: 801769001983
