Description

600 W

The SS60 is a 600 W, 50/200 kHz transducer which integrates Airmar’s popular, Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise. By orienting the beam directly down, it ensures maximum echo returns to the transducer and more accurate depth readings.

Available in three Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 8 to 15° hull deadrise angles

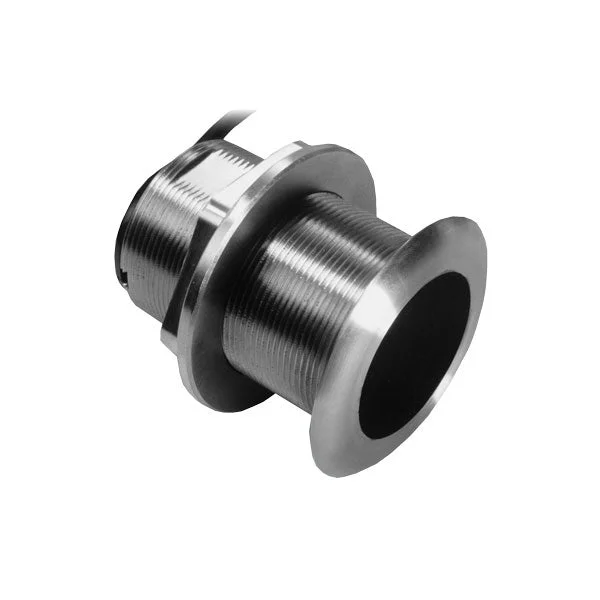

Sirmar SS60 Stainless Steel Thru Hull with 20deg Tilted Element 50/200Khz 8-Pin Garmin Plug

Model: SS60-20-8G

• Engineered for center-console and trailered boats
• Low-profile protrusion below the hull
• No affect on your boats running performance
• Arrow on cap points toward keel when installed
• Built-in temperature sensor
• Boat Size: Up to 8 m (25’)
• Stainless steel transducer housing
• Fixed 20° tilted version for 16° to 24° hull deadrise

The SS60 is the stainless-steel version of Airmar’s popular, B60, Tilted Element™ transducer. This product provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in deadrise compensation. The resulting vertical beam returns crisp echoes for more-accurate depth readings. For hulls with a minimal deadrise angle, it is also available without tilt. The nearly-flush housing minimizes drag with only 5 mm (3/16″”) extending outside of the hull. The SS60 is currently being used by the US Coast Guard.

Specifications

Beam Width	45/12
Frequency	50/200

• Depth and fast-response water temperature sensing
• 600 W of power
• Dual-frequency element:
• 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200′)
• 200 kHz with a 12° beamwidth for depth performance to 206 m (700′)
• Perfect for center-console or trailered boats
• Low-profile housing extends only 5 mm (3/16″) below the hull
• No effect on your boat’s running performance
• Stainless steel housing for use in all hull materials
• Available in a bronze housing (B60) for use in a fiberglass or wood hull

SKU: NVN-1002449
MPN: SS60-20-8G
UPC:
