Description

The TM260 comes with a rugged stainless-steel mounting bracket that is easy to install and has a streamlined shape. The performance of Airmar’s “1 kW, 260 family” of transducers is legendary. The combination of power and sensitivity has made this the high-performing transducer of choice with conventional fishfinders. Operating at 50 and 200 kHz, the narrow, 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz is excellent at deep-water detection, and the wide, 19° beam yields broad coverage under the boat.

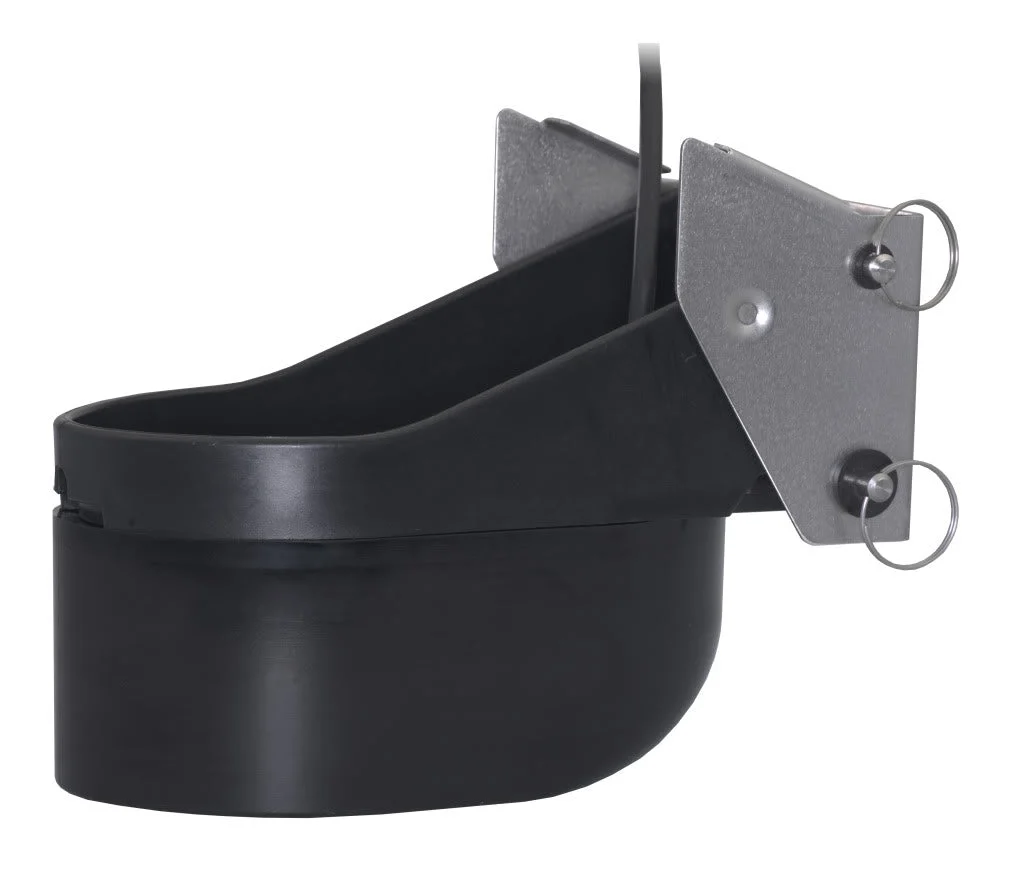

TM260 Transom Mount 1kW Blue Connector for Simrad & Lowrance

Fits: Navico units with 7-Pin Blue Connector

Powerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today’s fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).

Features:

• Transom-Mount, Urethane Housing
• Depth and Temperature
• Maximum Depth Range: 50 kHz— 529 m to 735 m (1,800’ to 2,500’), 200 kHz—206 m to 294 m (700’ to 1,000’)
• Boat Size: 8 m to 12 m (25’ to 40’)
• Top-of-the-line narrow-beam transom-mount
• Designed for bottom fishing
• Wide 19° beam at 50 kHz
• Narrow 6° beam at 200 kHz
• Interfaces to any 600 W or 1 kW sounder
• Cable length: 10m (33 ft)
• Kick-up assembly locks in the “up” position and will not damage the transom
• Accommodates transom angles between 3° and 21°

Fishing Applications:

• Blue-water trolling using 50 kHz
• Deep-water bottom and wreck fishing up to 800 m (2,625′)

Suitable for Simrad and Lowrance’s TM260 tail plate mounting 1kW blue connector. Suitable: Navico unit with 7-pin blue connectorPowerful and sensitive! TM260 brings the legendary performance of the B260 to your vessel…

• Depth and fast-response water-temperature sensor
• 1 kW
• Dual-frequency element:
  • 50 kHz with a 19° beamwidth for depth performance to 800 m (2,600′)
  • 200 kHz with a 6° beamwidth for depth performance to 294 m (1,000′)
• Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual-transmission-line fishfinders
• Urethane transom transducer for installation on outboard and I/O powered boats
• Stainless steel kick-up bracket locks in the “up” position and will not damage the transom
• Also available as bronze thru-hull (B260), stainless steel thru-hull (SS260) and in-hull (M260) models
• Exclusive Xducer ID technology

SKU: NVN-66247
MPN: TM260-BL
UPC: 014445658726
