Description

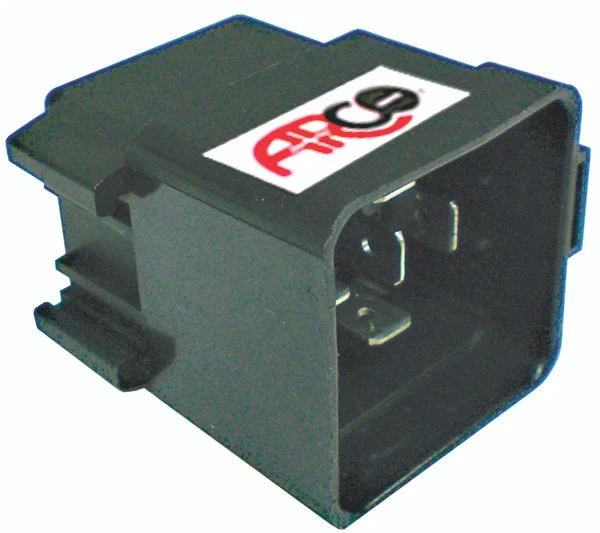

The tilt trim relays regulate the current draw required to run the tilt trim motor effectively. The relay’s function is to turn on and off the electricity to the tilt trim motor. The relay serves as an alternative to the main switch that the boat operator activates at the helm. When the tiller switch is activated, the current is transmitted to the relay, which contains an electromagnet that completes the circuit and provides current to the tilt trim motor. The Relay – ARCO Marine (R751) fits Mercruiser and Mercury Verado Outboards and marine-grade electrical component construction that can withstand the harsh marine environment.

Key Features

• Restores your outboard motor’s seamless and uncomplicated rising and lowering.

• Efficiently controls current to the tilt trimming engine

• 12-volt capacity 30 AMP

• Marine-grade electrical component

• Meets OEM standards for performance

• Interchangeable to Mallory 9-15213 and Mercury Marine 87-19761, 882751A04

Specifications

• BRAND: ARCO MARINE

• SKU: R751

• UPC: 693006009582

• Weight:1.00 LBS

12 volt, 30 amp. Fits: Mercruiser & Mercury Verado Outboards

This product replaces:

57-R751, 693006009582, R-751, R751
