Description

Inertia of surging fuel drives the surge ball up against the upper seat, closing the large vent opening. Passage is limited to the smaller openings, which reduce fuel flow and minimize spillage. When the tank becomes full it causes automatic fuel nozzles to shut off. Without fuel inertia, the surge ball remains at rest, allowing unrestricted venting through all openings. Baffles and traps help prevent water from entering vent line and fuel tank during normal sea conditions and washdowns.

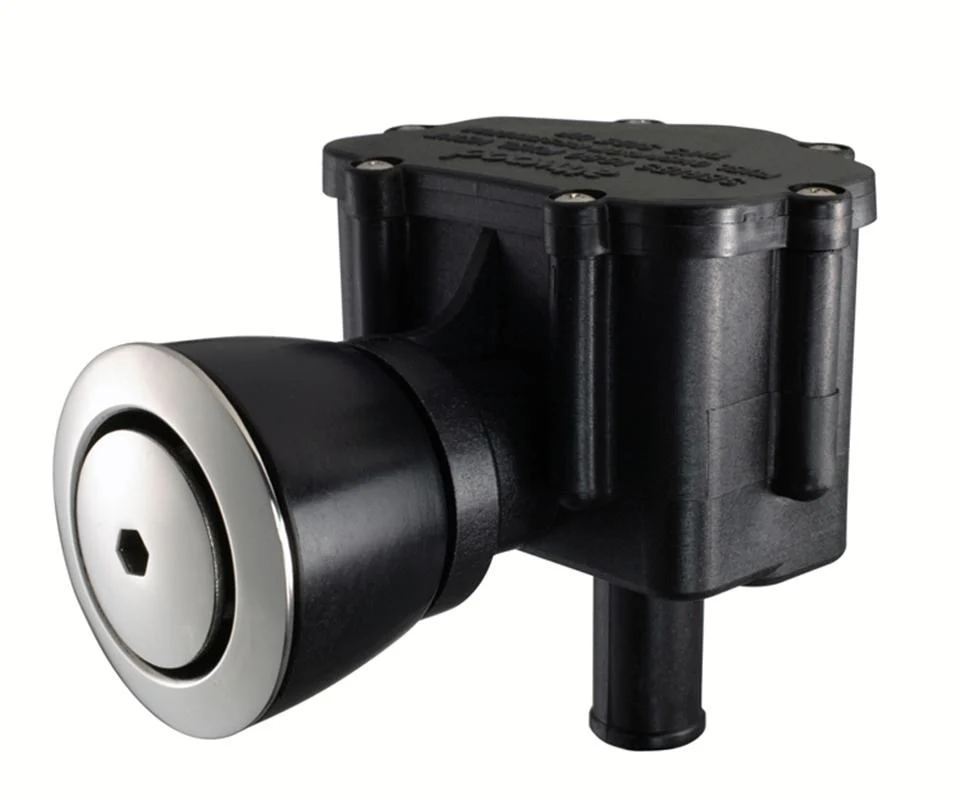

Attwood Marine 16841 Attributes

• Compatibility: 5/8 Inch Inside Diameter Hose
• Style: P-Trap Vent
• Hull Thickness: 1 Inch
• Color: Black
• Material: Plastic (Polypropylene)
• Mounting Type: Flush Mount

Attwood Marine 16841 Features & Benefits

• Operates In Any Orientation Within 45 Degree Of Vertical
• Withstands Oil, Gas, Alcohol-Blended Fuels
• Constructed Of Glass-Filled Polypropylene
• Surge Protection
• Water Intrusion Protection
• Meets ABYC Standards
• Eliminates The Need To Install A Fuel Line Vent And A Surge Protector–now One Product Helps Avoid Fuel Spills
• Provides Fuel Tank Venting, And Resists Water Intrusion Into The Fuel System
• Limited 2 Year Warranty

Attwood Marine 16841 Warranties

• Attwood Warranty 2009.pdf

SKU: NVN-2005535
MPN: 1684-1
UPC: 022697025289
