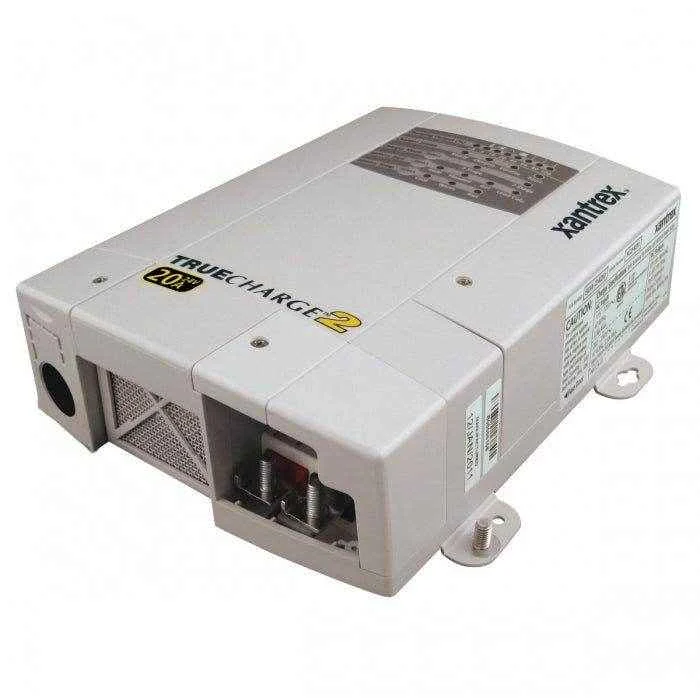

Battery Charger 24V TC2024 | Xantrex 804-2420

XANTREX BATTERY CHARGER 24V TC2024 804-2420

• 20 amp DC total output
• 3 outputs for charging up to 3 separate battery banks simultaneously
• 24 volt DC output voltage
• Settings for two and three-stage charging
• Charges flooded, gel, AGM, or lead-calcium batteries
• Temperature-compensated charging
• Power factor corrected for efficient charging
• Battery-equalization feature
• Auto-ranging universal input voltage (90-265 Vac 47-63 Hz) is also compatible with a generator or other low-quality power sources
• Reverse battery polarity protection
• Drip-proof design
• DC over-voltage protection
• Battery overcharging protection
• Physical dimensions 2.8” x 6.7” x 9.8”
• Two year warranty
• Battery temperature sensor available 808-0232-01
• Optional remote panel 808-8040-01 required for parallel stacking
