Description

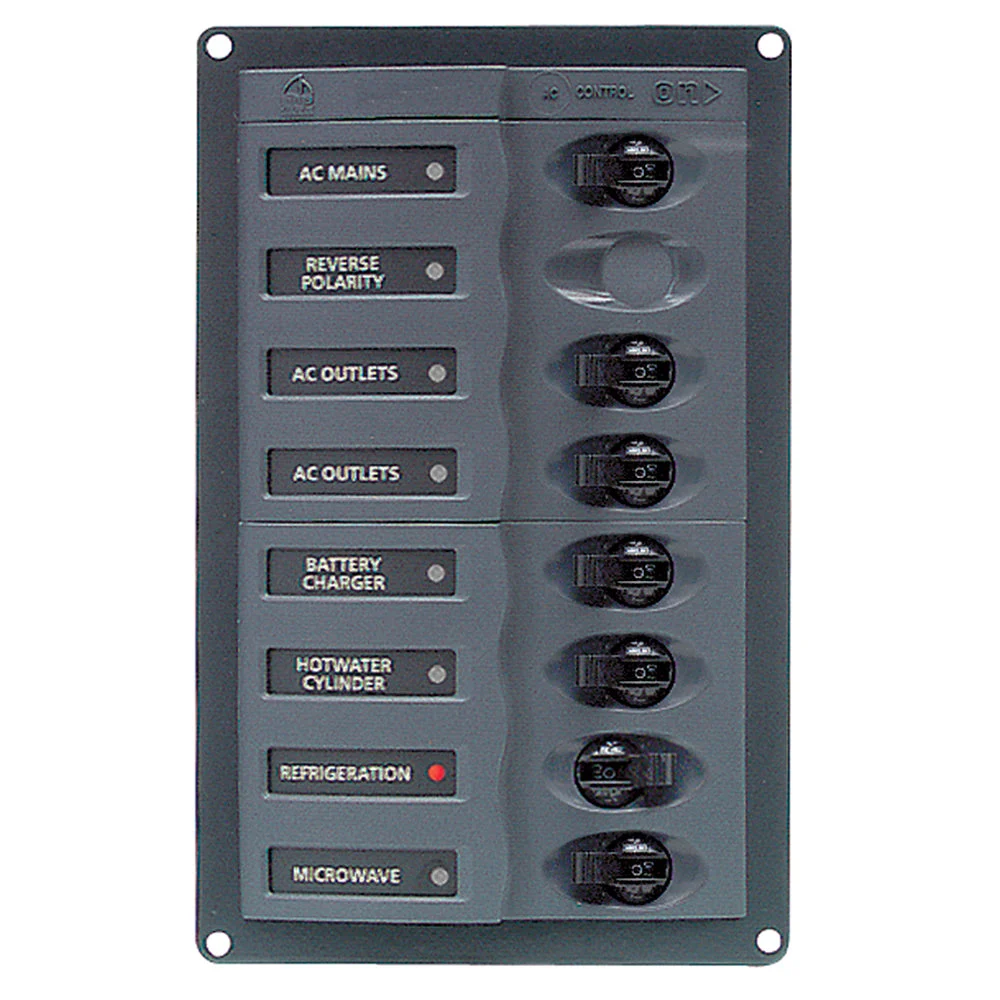

AC Circuit Breaker Panel without Meters, 6 Way with Double Pole Mains
Ideal for AC shore power installations and on board inverter installations.
Specifications

• Total Positions: 6 Loads + 1 Input
• Circuit Breakers: 3X 15A, 2X 20A, 1X 25A, 1X 30A
• Nominal Voltage: 110V AC
• Maximum Amperage: 30A
• Dimensions: 7.9″ X 5″ X 2.5″
• Neg Bus: IS-6MM-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Ideal for AC shore power installation and on-board inverter installation. 900-ACM2W-110V includes: reverse polarity indicator, 1 x 20A bipolar main power supply and 2 x 10A unipolar power supply…
SKU: NVN-59006
MPN: 900-ACM6W-110V
UPC: 870216003122
