Description

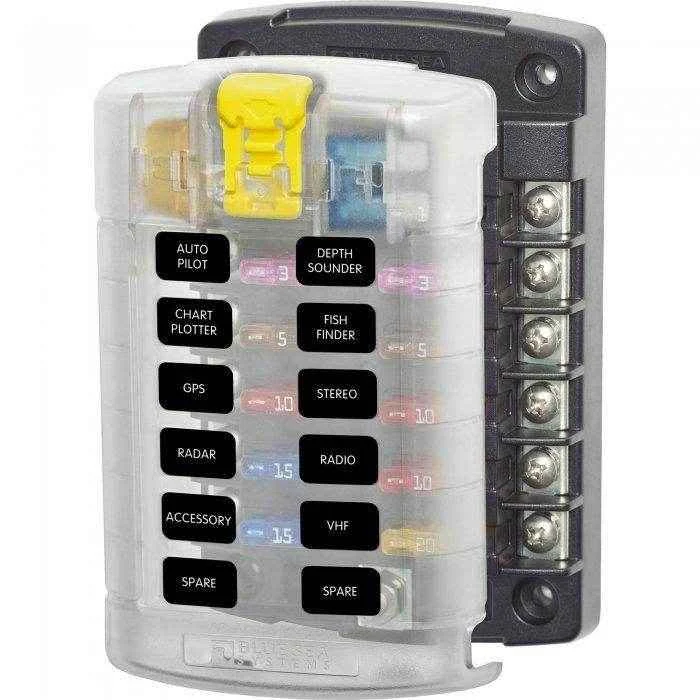

Blue Sea Systems Ato/Atc 12 Circuit Fuse Block With Cover 5029

Blue Sea 5029 ST Blade Fuse Block with 12 Circuits and Cover

• ATO/ATC 12 Circuit Fuse Block With Cover
• #8-32 screw terminals
• Clear insulating cover with label recess for small format labels
• Cover insulates all conductive parts satisfying ABYC/USCG requirements
• Tin-plated copper buses and fuse clips give 30 Ampere rating per circuit
• Accepts ATO and ATC fast acting blade type fuses
• Reinforced polycarbonate base material
• Clear polycarbonate cover material
• ATO/ATC fuses 1 to 40 amperes available
• Maximum amperage per circuit 30 amperes
• Maximum amperage per block 100 amperes
• Maximum voltage 32 volts DC
