Description

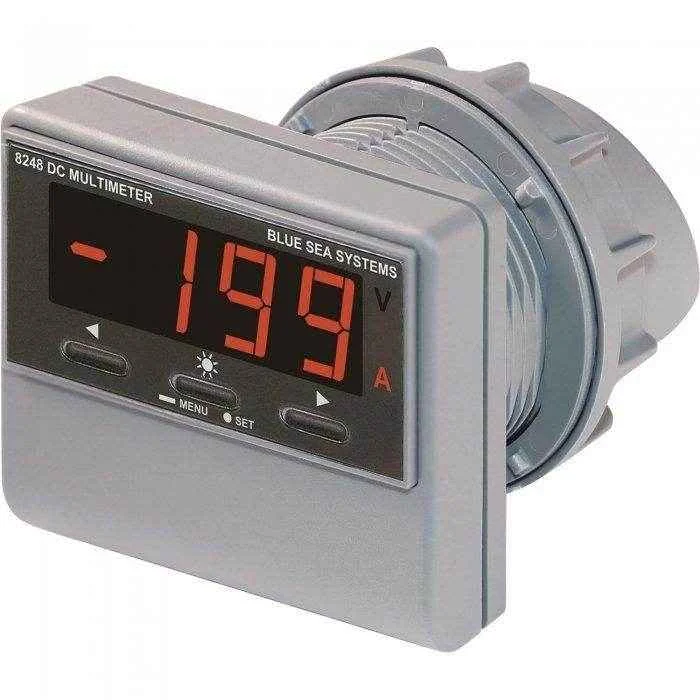

BLUE SEA SYSTEMS DC Digital Multimeter with Alarm 8248

Digital multi-function meter monitors & displays DC system’s voltage level & amperage usage.

• DC multimeter
• Monitors and displays DC electrical system status
• High voltage and low voltage audio and visual alarms alerts when programmable thresholds are crossed
• Displays voltage from 0 to 60 volts DC in 0.01 volt increments
• Displays amperage from -500 to +500 amps DC
• Power consumption of .60 to 1 watt
• Features easy-to-read LED characters and 3 levels of display brightness
• 9/16 in. display character size
• Sleep mode clears display to conserve power
• Splash-proof front for installation in locations that may be exposed to spray
• Cleanly surface mounts with a 2 in. hole cutout
• Meter operates in negative side of circuit only
• Shunt shifter (sold separately) is required for circuit positive side installation such as on alternators
• Panel mounts with Blue Seas P/N 8013 or 1475 – sold separately
• Includes 500 amp shunt P/N 8255
