Description

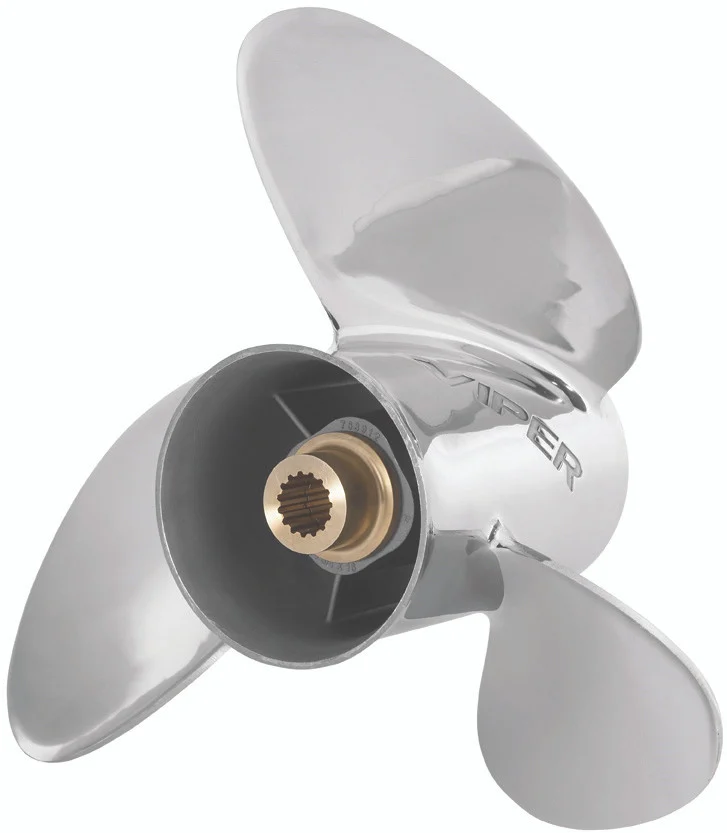

The 14.75 X 19 Steel Three Blade Right Hand Rotation PROP VIPER TBX Hub is what you’ll need if you want to go quickly (763916). Runabouts, cruisers, and deck boats are examples of some recreational boats that perform well because of their larger diameter and longer swept blades that provide better water grip, acceleration, and top-end speed. And the VIPER is equipped with the TBXTM hub technology, which flexes and softens shock loads to protect the bottom unit drivetrain, bringing new levels of durability and dependability to the Viper. It improves fuel economy while reducing vibrations.

Key Features:

• The right-hand moves in a circular motion.
• propeller with three blades
• The TBXTM Hub System modular hub system.
• Performance and adaptability are both required.
• You’ll have a high-luster, one-of-a-kind finish.
• Proportions, speed, and endurance are on the right.
• There are four and six-cylinder engines available.
• Runabouts, decks, flats/bays, multi-species, and offshore vessels are welcome.

Product Specifications:

• SKU: 763918
• UPC: 824375031007
• Weight: 17.00 LBS
• Rotation: Right
• Blades: 3BL
• Diameter: 14.75 x 19 inches

Engine Application

90-140 Horsepower V-6 Gearcase, 135-250 Horsepower V-6, 250-300 Horsepower V-8

V-6 Gearcase—90 hp (Evinrude E-TEC™) 2004-thru;
100 hp 2004-thru;
100 hp (Commercial) 1984-thru;
120 hp 1985;
130 hp 1995-96;
40 hp 1985;
140 hp (25”) 1989-thru V-6 —135 hp 2000-thru;
150 hp 1978-thru;
155 hp (Commercial) 1978-thru;
175 hp 1977-thru;
185 hp 1984-85;
200 hp 1976-thru;
225 hp 1986-thru;
235 hp 1978-85;
250 hp 2000-thru;
2.6L 1984-85 V-8—250 hp 1991-thru;
275 hp 1986-88;
300 hp 1988-95;
3.6L 1986-87

Attaching Hardware:H26

90-140 Horsepower V-6 Gearcase, 135-250 Horsepower V-6, 250-300 Horsepower V-8

V-6 Gearcase—90 hp (Evinrude E-TEC™) 2004-thru;
100 hp 2004-thru;
100 hp (Commercial) 1984-thru;
120 hp 1985;
130 hp 1995-96;
40 hp 1985;
140 hp (25”) 1989-thru V-6 —135 hp 2000-thru;
150 hp 1978-thru;
155 hp (Commercial) 1978-thru;
175 hp 1977-thru;
185 hp 1984-85;
200 hp 1976-thru;
225 hp 1986-thru;
235 hp 1978-85;
250 hp 2000-thru;
2.6L 1984-85 V-8—250 hp 1991-thru;
275 hp 1986-88;
300 hp 1988-95;
3.6L 1986-87

Attaching Hardware:H26

Omc Stern Drive, Omc Cobra, & Omc Model 800

3.0L 1990-93;
3.8L 1980-93;
4.3L 1985-93;
5.0L 1978-93;
5.0L 1978-93;
5.0L HO 1989-93;
5.0L (EFI) 1993;
5.7L 1978-93;
5.8L 1978-93;
5.8L (EFI) 1993;
7.4L 1987-93;
7.5L 1987-93;
454 King 1990-93;
502 King 1990-93;
3.2L Diesel 1992

Attaching Hardware:H82

Attaching Hardware

H26

Cotter pin (100/box):
Other: 354987
Cotter pin only (10/pack):
Sierra: 18-3741
Other: 306394
Nut, keeper & pin:
Sierra: 18-3708-1
Other: 398042
Nut, keeper & pin:
Quicksilver: 802126Q1
Spacer, nut, keeper & pin kit:
Sierra: 18-3715
Quicksilver: 802009Q1
Splined spacer washer (aft):
Sierra: 18-4231
Splined spacer, nut, keeper & pin kit:
Sierra: 18-3715
Thrust washer (forward) 1.004″ I.D. 1990 & Earlier:
Sierra: 18-4223
Thrust washer (forward) 1.065″ I.D. 1991 & Later:
Other: 3852020
Turbo brand for V-6 Evinrude ‘91 & newer VT-2 Evinrude Intruder or Johnson Fastrike 150 & 175 Shooter/Renegade thrust washer (forward) 4-blade 1991 and newer:
Other: 128740 or VT-3

H82

Cotter pin (10/pack):
Sierra: 18-3741
Nut, keeper & pin:
Sierra: 18-3708-1
Other: 398042
Spacer washer (aft, splined):
Sierra: 18-4194
Other: 3852350
Spacer washer, nut, keeper & pin kit:
Sierra: 18-3733
Thrust washer (forward):
Other: 3852020

This product replaces:

BRP763918, 824375031007, 763918, 176617, 176627, BRP176627, BRP176617
