Description

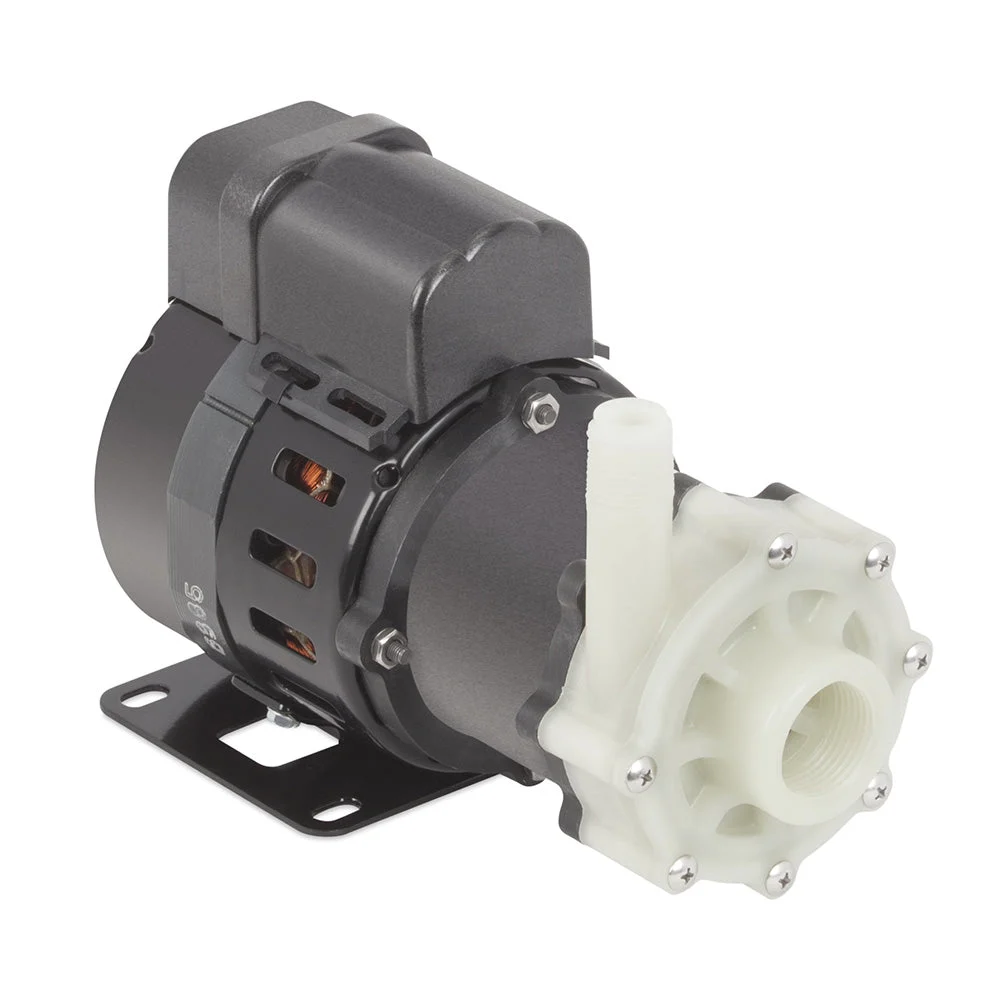

Magnetic Drive Pump – Air Cool – 115V

The industrial AC-5C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 1 foot, and its maximum head is 27 Feet (11PSI).

Features:

• Air Cooled (AC) seal-less centrifugal magnetic drive pump
• Applications include marine air conditioners, chemical recirculation, refrigerators, small scrubbers, detergent mixers, computer cooling, and carbon arc furnace cooling
• Shaft seal not required
• Pumps can be serviced with a screwdriver
• Capable of handling mildly or highly corrosive chemicals, acids, and solvents
• UL listed and rated as continuous duty
• 1-Year Limited Warranty

Specifications:

• Max Pressure: 50 PSI
• Output: 1020 GPH
• Max Liquid Temperature: 190 degrees F
• Outlet: 1/2″ MPT
• Voltage: 115V AC

SKU: NVN-104845
MPN: AC-5C-MD
UPC:
