Description

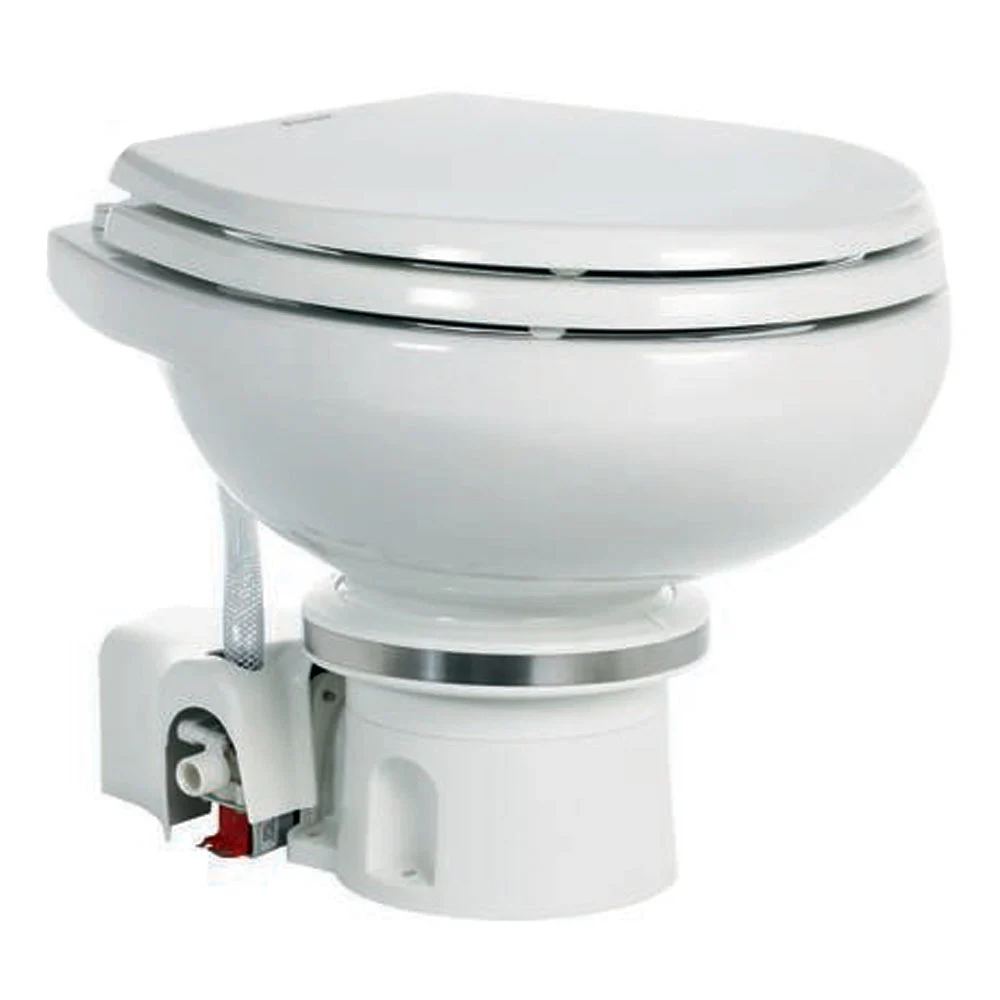

MasterFlush 7120 White Electric Macerating Toilet with Orbit Base – Fresh Water

MasterFlush 7100 series toilets, featuring an omnidirectional rotating base, provide the only full 360 degrees of bowl-to-base rotation in a basic macerator toilet. The base can be positioned in any configuration to maximize even the smallest installation space, all while providing a residential-size seat and bowl.
Employing the same large enameled seat and deep ceramic bowl size of a residential round-front toilet, the 7100 toilet series introduces a new path to better comfort for owners of small boats. Smoothly contoured seat-to-bowl design conveys an expensive look – without the extra cost. And the deep, rounded slope adds not only to the appearance, but also to splash-resistance during use and while underway.
As with all Dometic MasterFlush toilets, the 7100 series assures trouble-free, odor-free performance by virtue of its unmatched maceration effectiveness.  A rugged, glass-filled nylon twin impeller instantly draws effluent into the macerating chamber, where the 10-bladed stainless steel cutting wheel pulverizes waste and ejects it to the discharge line/holding tank.

It’s also perfect for retrofitting.
Benefits:

• Dual-stage impeller/macerator fully processes waste for thorough pump-out
• Full 360-degree ORBIT bowl-to-base rotation allows limitless base positioning in small spaces and diverse layouts
• Small footprint – fits in most any head compartment
• Uses as little as 1/3-gallon (1.2 l) per flush
• Comes with DFS-1F Flush Switch

Technical Specifications:

• Water Supply – Onboard Fresh Water
• Toilet technology – Macerator
• Method of operation – Flush switch
• Height – 14.75″
• Width – 15″
• Depth – 19″
• Input voltage – 12V
• Circuit breaker fuse – 25AMP

In the Box:

• Macerator toilet
• Single-function flush switch DFS-1F
• 1.5″ Discharge fitting
• Floor mounting hardware kit
• Water supply hose kit
• Installation instructions, operating manual, quick-start guide

Legacy P/N 304712001

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
MasterFlush 7120 White Electric Soaking Toilet-12V Electric Soaking Toilet with Track Base and Fresh Water Flushing Fresh Water Flushing with Orbit Base MasterFlush 7100…
SKU: NVN-88146
MPN: 9108824451
UPC: 713814206949
