Description

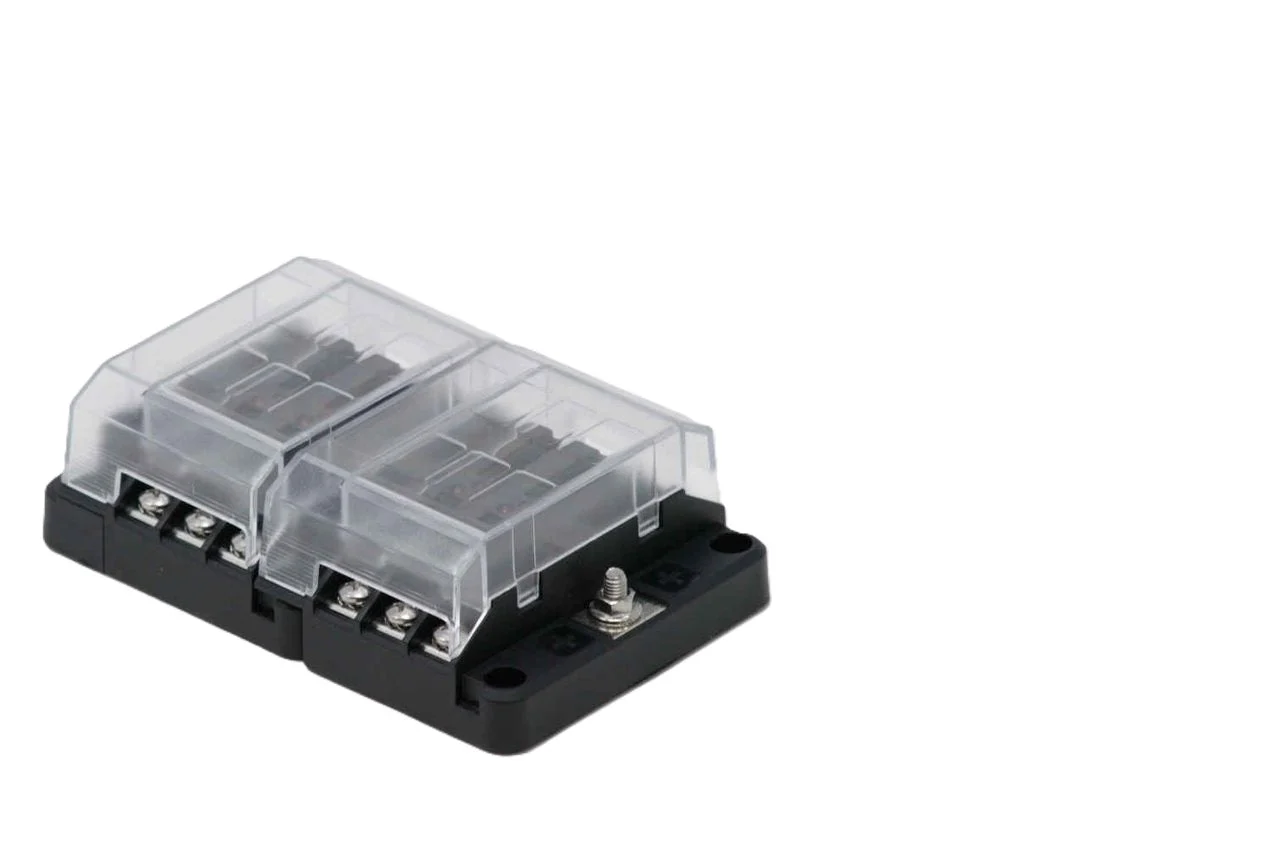

EGIS RT Fuse Block 12 Circuit with LED Indication
Model: 8029
- Spare Fuse Locations Two locations per 6 circuits for spare or test resistors for reducing siren volumes during evaluation.
- Stainless Steel Self-Locking Hardware 100 % Non Ferrous corrosion resistant materials. All attachment screws and nuts are self locking.
- LED Fuse Diagnostics Blown fuse LED indication for each output circuit provides clear indication of faulty circuits and eases trouble-shooting issues remotely.
- Cover/ Label Recesses Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.
Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.
Supports SAE Circuit Protection Standards for thermal/short circuit events.
Specifications
| Max Current – Entire Block (Amps) | 100 |
| MAX CURRENT – Per Circuit (AMPS) | 30 |
| MAX Output Wire Size | #10 AWG |
| VOLTAGE RANGE (V DC) | 12-24 |
| Number of Fuse Positions | 12 |
| Compatible Fuse Types | ATO / ATC / AT |
SKU: NVN-1004227
MPN: 8029
UPC: 850035199749
