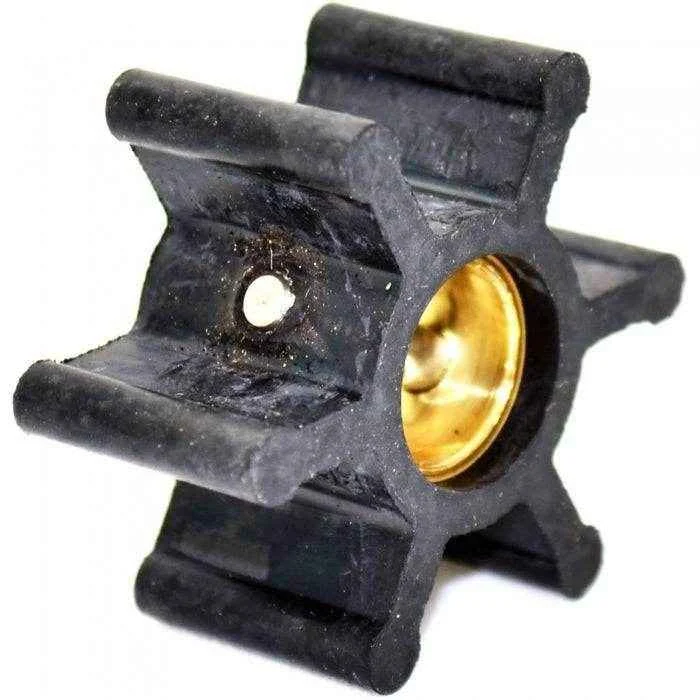

F35 Johnson Pump Impeller Kit | Johnson Pump 09-808B-1

F35 Johnson Pump Impeller Kit | Johnson Pump 09-808B-1

OE Johnson Pump MC97 impeller kit engineered for F35 series engine cooling pump assemblies. This precision-machined component features a six-blade MC97 elastomer impeller geometry optimized for marine engine coolant circulation. The impeller hub utilizes pin-drive engagement for secure rotational coupling, with dimensional specifications of 1.58 inches outer diameter, 3/4 inch axial width, and 0.47 inch shaft bore. The assembly includes a nitrile elastomer o-ring seal and factory-supplied glycerin lubricant packet for initial installation and bearing protection. OEM equivalent to Johnson Pump 09-808B, Jabsco 22405-0001, Vetus IMP00601, and Volvo Penta 875583-7 and 833995 applications. Manufactured to original Johnson Pump specifications for reliable freshwater and raw-water cooling system operation.

• MC97 impeller material for water pumping applications
• Pin drive hub
• 6 impeller blades
• 1.58 in. diameter x 3/4 in. width x .47 in. shaft
• Includes o-ring and lubricating glycerin packet
• Replaces Johnson Pump 09-808B
• Replaces Jabsco 22405-0001
• Replaces Vetus IMP00601
• Replaces Volvo Penta 875583-7 and 833995
• Original Johnson Pump
