Description

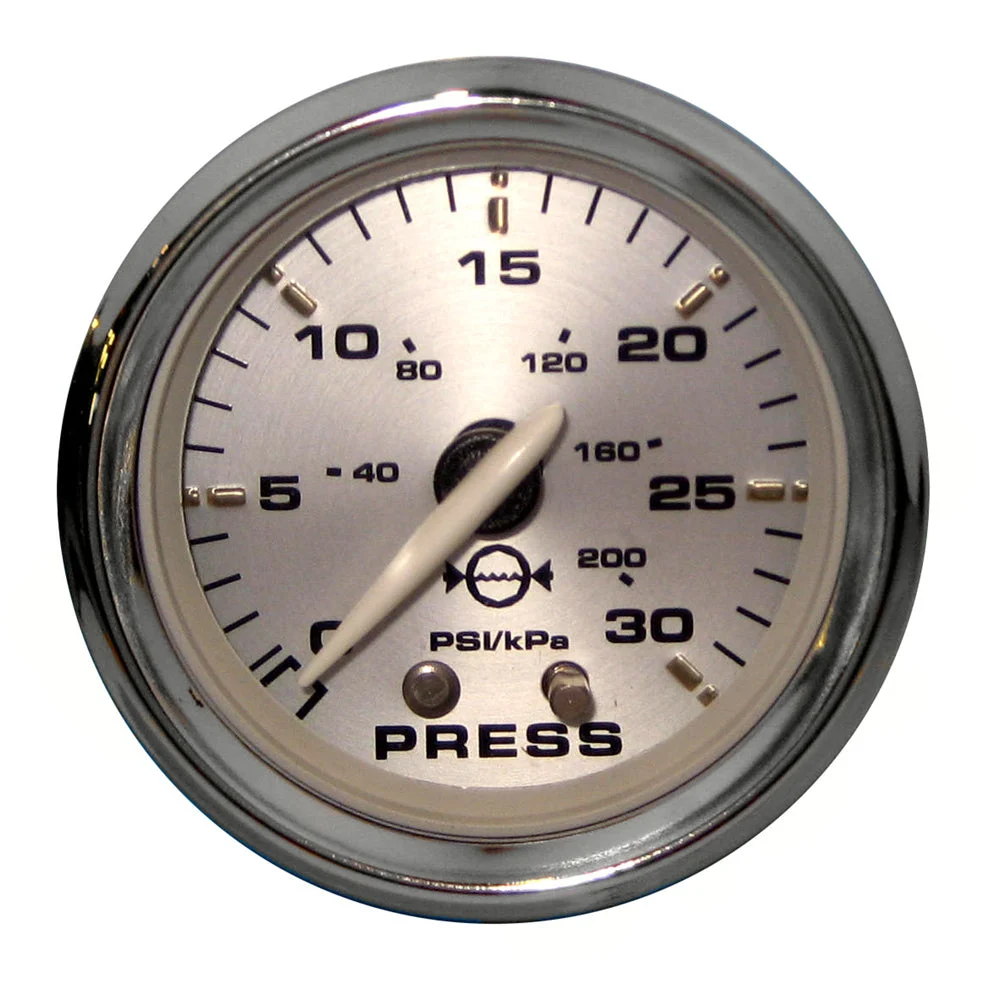

Kronos 2″ Water Pressure Gauge Kit – 30 PSI

Polished Stainless Steel bezel, flat glass lens, perimeter lighted spun aluminum dial with Gold and Black graphics. Gold increments and Logo on dial are Embossed.  All instruments include two piece Newport pointer with White hub.

A pressure gauge operates by sending a low amperage current through the gauge’s meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc…

As the sender’s resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the change in pressure.

2″ – Hole size: 2.0625″ (53mm)

Specifications:

• Flat Scratch Resistant Lens
• Polished Stainless Steel bezel
• LED Illuminating around the Perimeter of the Dial
• Newport style White Pointer
• Dual Scale – Imperial and Metric

In the Box:

• 2” 30 PSI Kronos SS Water Pressure gauge
• 1/8” NPT Adapter w/locktite VS 516
• Mounting hardware
• 15’ Tubing

Factory P/N OP1171

*Sold as an Individual

**Gauge Cover not Included

Kronos 2 water pressure gauge kit -30 psi 2-hole size: 2. 0625 53mm pressure gauge by passing low ampere current through the pressure gauge through a…
SKU: NVN-54727
MPN: 19007
UPC: 759266190078
