Description

Designed for use with marine and utility trailers, Fulton brand tongue jacks are time- tested and application-proven. Our bolt-on versions include all necessary mounting hardware. For weld-on applications, we offer two styles of mounts for both 1/2 Inch and 3/8 Inch pull pin models. The Fulton brand bolt-thru swivel mounts (U.S. PAT. 6,302,381) use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum support.

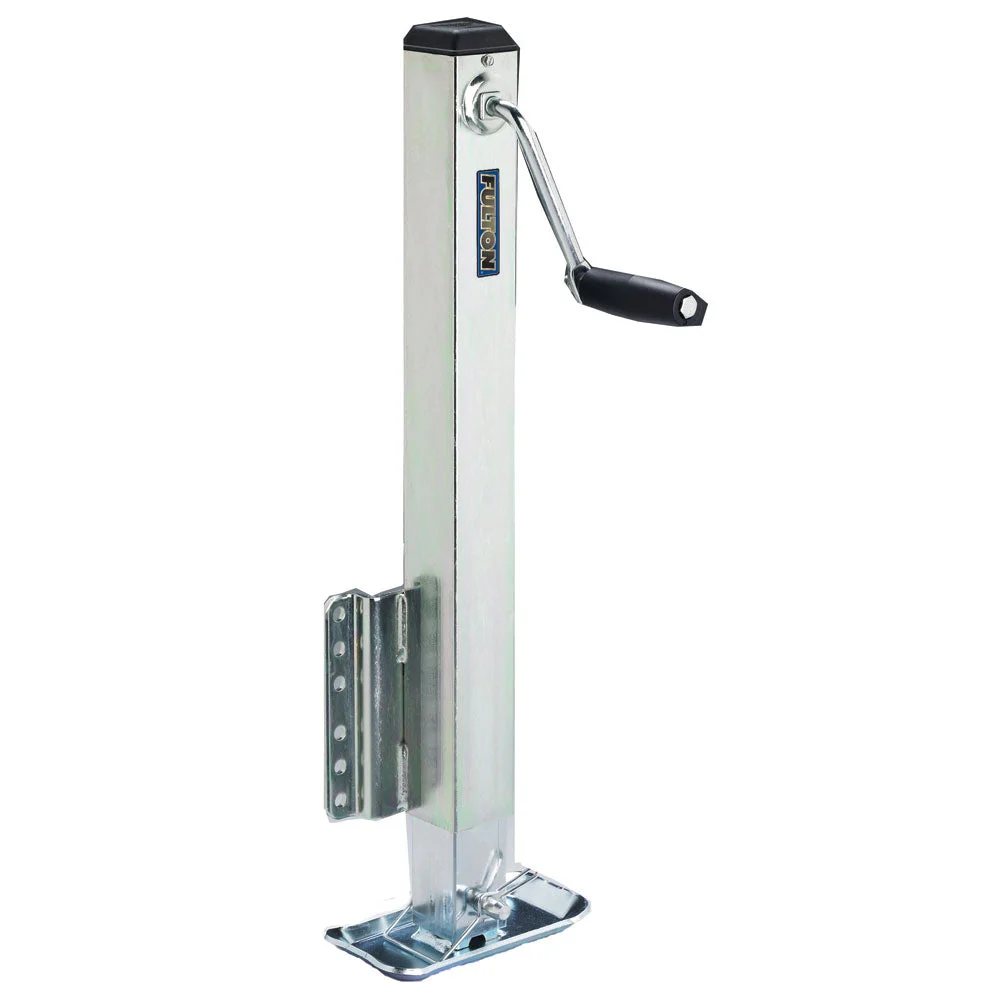

Fulton HD25000101 Attributes

• Operation Type: Manual
• Capacity: 2500 Pound
• Maximum Lift: 28 Inch
• Mounting Type: Bolt-On
• Type: Square Sidewind
• Number Of Wheels: Without Wheel
• Color/ Finish: Silver Zinc Plated
• Swivel: Yes
• Retracted Height: 7 Inch
• Extended Height: 35-1/2 Inch
• Clearance: 19-1/4 Inch
• Material: Steel
• Estimated Install Time (Hours): 0.5

Fulton HD25000101 Features & Benefits

• Heavy Duty Square, Drop Leg Jack
• Extensive Choice Of Popular Models, Sidewind Crank With Round Or Square Tubes
• Strong Proprietary Bushing Materials
• Stable Formed Heavy-Gauge Steel Construction
• Dependable Design
• Limited 5 Year Warranty

• Fixed mount trailer jack
• Heavy duty zinc
• Drop leg
• Pull pin diameter: 9/16″
• Lift capacity: 2500 lbs
• Measurements:
  Retracted: 7″
  Extended: 35.5″
  Clearance Height: 19″

  WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  The galvanized jack is suitable for large trailers with a tongue size of up to 3″ x 5″ and has a rated lifting capacity of 2,500 pounds. The all-steel structure, including fixing brackets, can ensure…
  SKU: NVN-38573
  MPN: HD25000101
  UPC: 088154097879
