Description

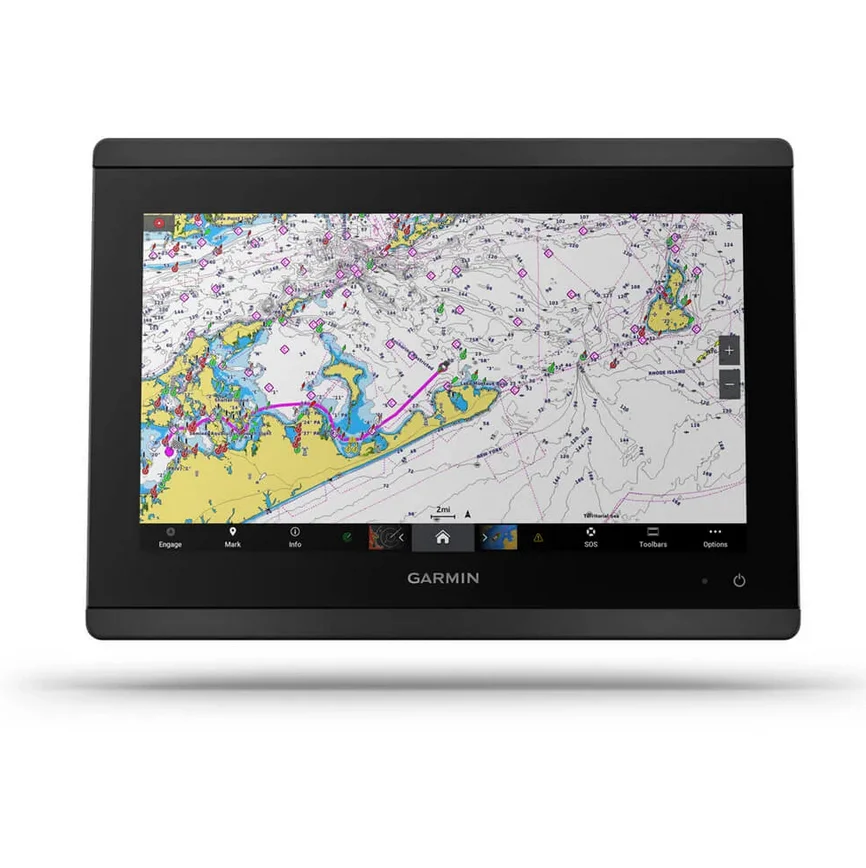

Garmin GPSMAP 8616xsv is a premium 16-inch touchscreen chartplotter/fishfinder built for serious marine navigation, sonar, and onboard system integration. It features a 15.6-inch full HD IPS display, built-in dual-channel 1 kW CHIRP sonar, built-in ClearVü and SideVü scanning sonar, Garmin Marine Network support, NMEA 2000 / NMEA 0183 connectivity, and preloaded Garmin Navionics+ inland and coastal mapping on current GN+ package listings. Transducers are sold separately, making this unit ideal for customers building or upgrading a Garmin networked helm.

Key Features

• 16-inch class multifunction display with 15.6-inch diagonal full HD IPS touchscreen.
• Display resolution: 1920 x 1080 pixels.
• Built-in 1 kW dual-channel CHIRP sonar.
• Built-in ClearVü and SideVü scanning sonar support.
• Compatible with Panoptix and LiveScope sonar systems when paired with the correct Garmin sonar equipment / transducer setup.
• Preloaded Garmin Navionics+ inland and coastal mapping with Auto Guidance+ support on current GN+ listings.
• Supports GPS, GLONASS, Galileo, WAAS, and a 10 Hz receiver.
• Network-ready with NMEA 2000, NMEA 0183, Garmin Marine Network, J1939, Wi-Fi, Bluetooth, ANT+, USB, HDMI input, HDMI output, and video input.
• Supports OneHelm, ActiveCaptain, Fusion-Link compatible radios, AIS, DSC, SmartMode, GRID remote input, and system expansion.
• Water rating: IPX7.
• Garmin model / part number: 010-02093-51.
• UPC: 753759285449.

Marine Electronics Compatibility

The GPSMAP 8616xsv is designed for Garmin networked marine electronics installations where a large-format helm display, advanced sonar capability, and integrated navigation control are required.

Compatible system areas include:

• Garmin Marine Network devices.
• NMEA 2000 networks.
• NMEA 0183 devices.
• J1939 engine data networks where supported.
• Garmin radar, sonar modules, cameras, autopilot, Fusion audio, AIS, DSC, and other supported onboard systems.
• Panoptix and LiveScope systems when paired with compatible Garmin sonar hardware and transducers.

This is a chartplotter/fishfinder display unit, not a standalone transducer package. The correct transducer, radar, network cables, mapping, and accessories should be selected based on the boat’s existing Garmin system and the customer’s fishing / navigation setup.

Fitment & System Compatibility Notice

Confirm compatibility by reviewing the boat’s existing electronics network, available helm space, power supply, transducer type, sonar needs, and Garmin Marine Network / NMEA requirements before ordering. Sonar functions depend on the connected transducer or sonar module, and Garmin notes that sonar features such as SideVü, ClearVü, Traditional CHIRP, UHD, LiveScope, and Panoptix depend on the chartplotter and sonar hardware combination being used.

When This Unit Is a Good Upgrade

The GPSMAP 8616xsv is a strong choice when upgrading to a larger helm display, adding advanced Garmin sonar capability, building a multi-display Garmin network, replacing an older MFD, or expanding a boat with radar, cameras, autopilot, engine data, or integrated audio controls. It is especially useful for customers who want a large, bright touchscreen with built-in sonar and broad system expansion options.

Installation Notes

Install using the correct Garmin power wiring, marine network cabling, NMEA 2000 backbone/drop configuration, and compatible transducer connections. Current package references list the unit with a power cable, NMEA 2000 drop cable, NMEA 2000 T-connector, flush mount kit, sun cover, trim piece snap covers, and documentation. Mounting options include flat and flush mounting, with bail mounting requiring optional accessory hardware.

Included Components

Current package references list the following in the box:

• GPSMAP 8616xsv display
• Power cable
• NMEA 2000 drop cable
• NMEA 2000 T-connector
• Flush mount kit
• Sun cover
• Trim piece snap covers
• Documentation

Alternate/Superseded Part Numbers

Current references identify this unit as Garmin GPSMAP 8616xsv, Garmin part number 010-02093-51, with UPC 753759285449. No direct superseding Garmin replacement number is shown in the current references reviewed.

Parts Desk Insight

The key with the GPSMAP 8616xsv is matching the display to the full electronics system, not just the screen size. Confirm the transducer plan, network layout, mapping needs, and mounting space first so the customer gets the sonar features and helm integration they expect.
