Description
Use Option (1) to select Cable Size and then Option (2) to select Pin Size

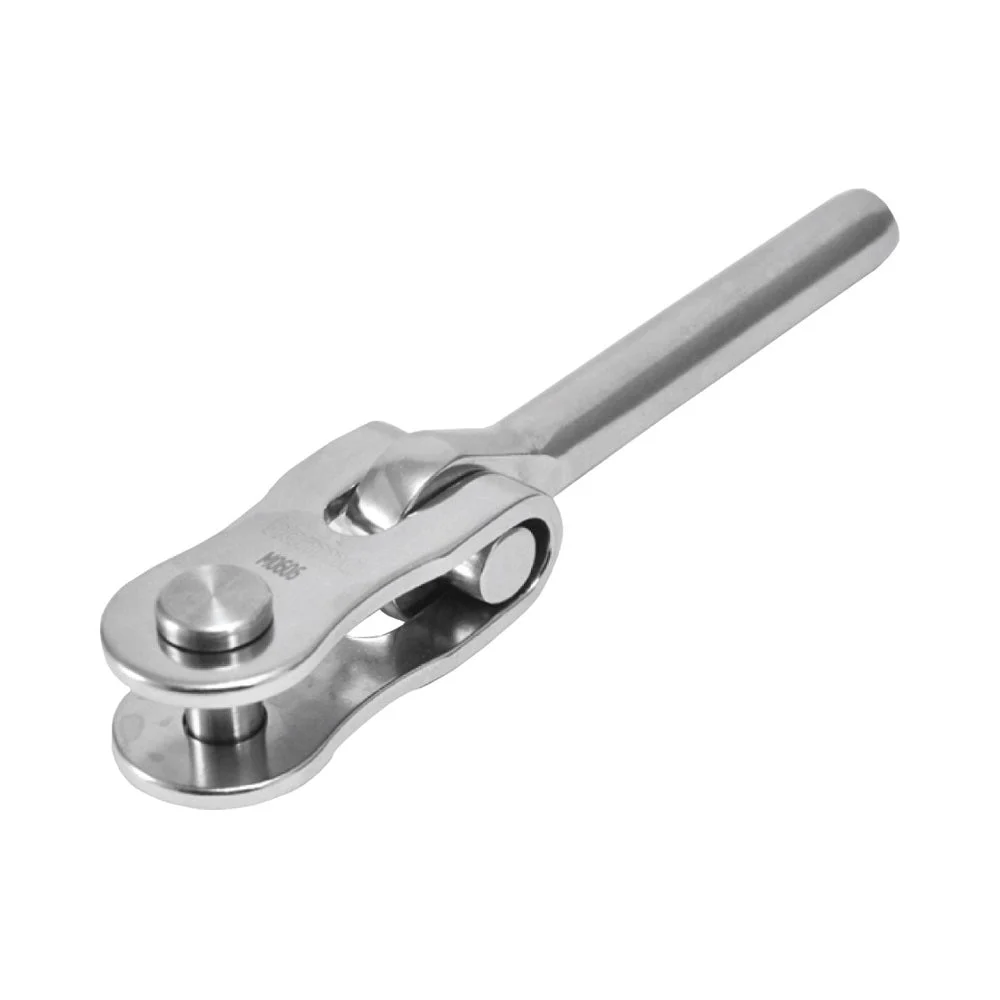

hamma™ Regatta Swage Toggles has been designed to match the extreme high performance of the hamma™ X and hamma™ Pro cables.
Features
– Marine grade 316 stainless steel
– High corrosion resistance
– Aesthetically pleasing
– 30% higher breaking strength to meet and exceed hamma™ Pro Strand
– Swage toggle plate articulates, therefore reducing the impact of vibrations on the wire rope
| Cable Size | Pin Size | MBS (kgf) | MBS (kN) |
| 4.0 mm | 5/16″ | 2,400 | 23.5 |
| 5.0 mm | 5/16″ | 2,400 | 23.5 |
| 5.0 mm | 3/8″ | 3,600 | 35.3 |
| 6.0 mm | 3/8″ | 3,600 | 35.3 |
| 6.0 mm | 7/16″ | 5,000 | 49.1 |
| 6.0 mm | 1/2″ | 6,800 | 66.7 |
| 7.0 mm | 1/2″ | 6,800 | 66.7 |
| 8.0 mm | 1/2″ | 6,800 | 66.7 |
| 8.0 mm | 5/8″ | 10,900 | 106.9 |
| 9.0 mm | 5/8″ | 10,900 | 106.9 |
| 10.0 mm | 5/8″ | 10,900 | 106.9 |
| 12.0 mm | 3/4″ | 15,900 | 156.9 |
| 14.0 mm | 7/8″ | 21,500 | 212.9 |
| 16.0 mm | 1″ | 28,300 | 277.6 |
| 5/32″ | 5/16″ | 2,400 | 23.5 |
| 3/16″ | 5/16″ | 2,400 | 23.5 |
| 3/16″ | 3/8″ | 3,600 | 35.3 |
| 7/32″ | 3/8″ | 3,600 | 35.3 |
| 1/4″ | 7/16″ | 5,000 | 49.1 |
| 1/4″ | 1/2″ | 6,800 | 66.7 |
| 9/32″ | 1/2″ | 6,800 | 66.7 |
| 5/16″ | 1/2″ | 6,800 | 66.7 |
| 5/16″ | 5/8″ | 10,900 | 106.9 |
| 3/8″ | 5/8″ | 10,900 | 106.9 |
| 7/16″ | 3/4″ | 15,900 | 156.9 |
| 1/2″ | 7/8″ | 21,500 | 212.9 |
| 5/8″ | 1″ | 28,300 | 277.6 |
