Description

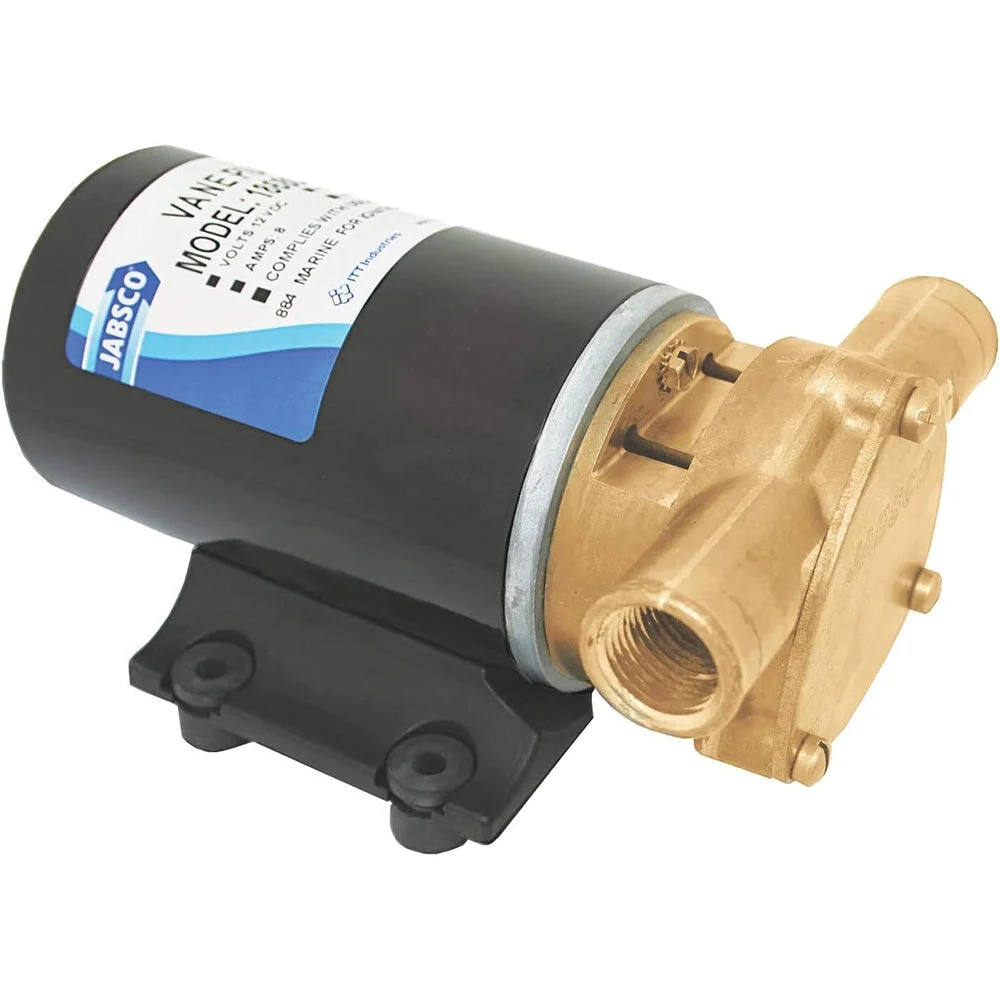

Light Duty Diesel Transfer Vane Pump – 24V

Features:

• The pump head may be mounted at 90° increments on the motor to allow mounting as needed
• Meets USCG 183.410 & ISO8846 Marine (Ignition Protection)

Specifications:

• Body Materials: Bronze
• Rotor: Plastic – Liquid Crystal Polymer
• Vanes: Plastic – Polyphenylene Sulfide
• Seal – Nitrile Lip Seal
• Shaft Material: Stainless Steel
• Port Type: 1/2″ NPT Female or 1″ (25mm) Hose barb
• Voltage: 12 or 24VDC
• Motor Type: Intermittent duty permanent magnet type
• Duty Cycle: 30 minutes at 10ft (3m) at 86°F (30°C)
• Weight: 2.5 (kg) 5 1/2 (lb)

SKU: NVN-109370
MPN: 18680-0940
UPC: 671880532204
