Description

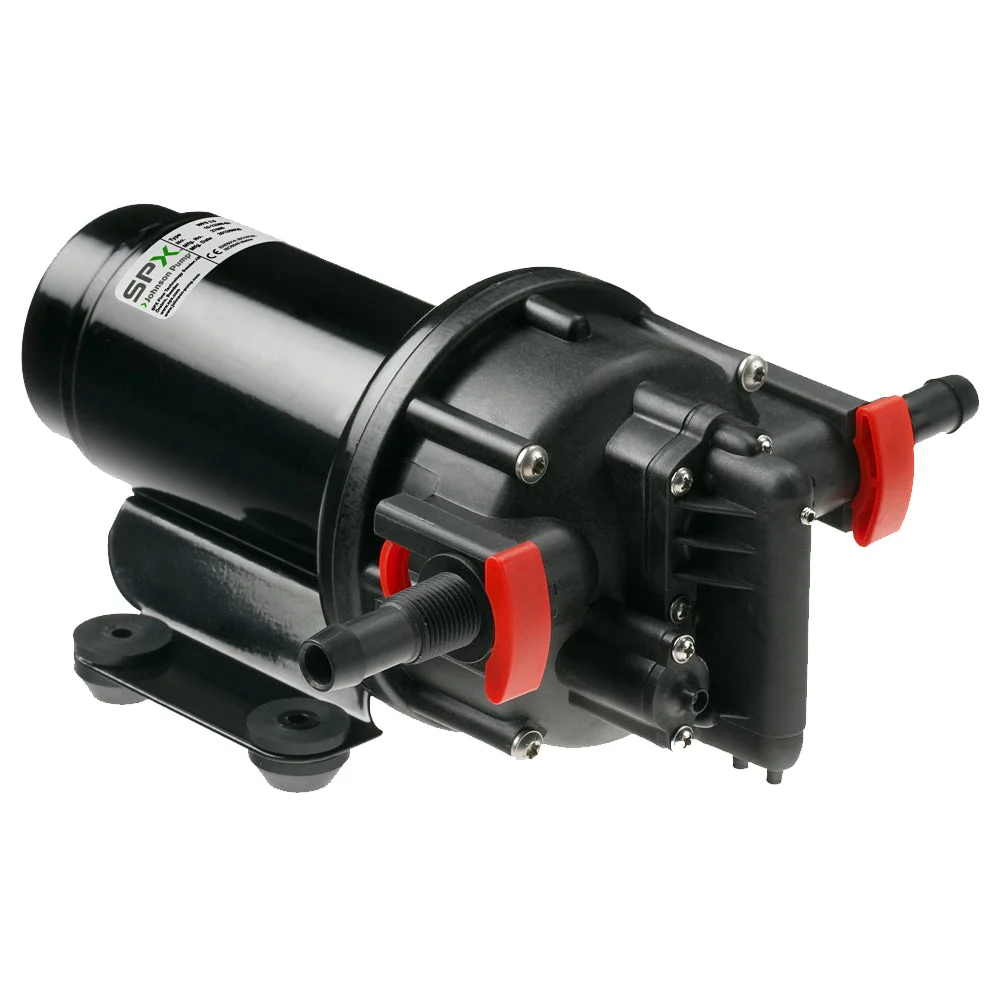

Aqua Jet Water Pressure Systems – 3.5GPM – 24V
The five chamber Aqua Jet WPS-series provides a reliable heart for small boat and recreational vehicle water pressure systems. Compared to conventional three or four-chamber diaphragm pumps, the Aqua Jet demonstrates dramatically lower noise and water pulsation characteristics. It is recommended to install the WPS-pumps with an accumulator tank. Always use a PUMProtector inlet strainer before the pump intake.
Diaphragm: Santoprene
Valves: EPDM
Body: PP/PPA
Motor: 85W
Capacity: 13 l/min – 3.5 GPM
Pressure Cut Off:2.8 bar – 41psi
Fuze Size: 5 A
Connection:3/8″ NPT/hose 1/2″, 1/2″NPT/Hose 3/4″, 1/2″ NPT, 3/4″ Hose
Weight: 2 kg /4.5lbs
Length: 236,5 mm/9.31″
Width: 210 mm/8.25″
Height: 116 mm/4.575″
“Aqua Jet Water Pressure Systems 3.5GPM, 24V. The five chamber Aqua Jet WPS-series provides a reliable heart for small boat and recreational vehicle water pressure systems. Compared to conventional three or four-chamber diaphragm pumps, the Aqua Jet demonstrates dramatically lower noise and water pulsation characteristics. It is recommended to install the WPS-pumps with an accumulator tank. Hose weight, 2 kg /4.5 lbs, Length, 236,5 mm/9.31″. Width, 210 mm/8.25″. Height, 116 mm/4.575″. Gallons Per Minute, 3.5. PSI, 41. Volts, 24. Box Dimensions, 6″ x 7″ x 12″. Wt: 7.5 lbs.”
SKU: NVN-49138
MPN: 10-13395-104
UPC: 729321910842
