Description

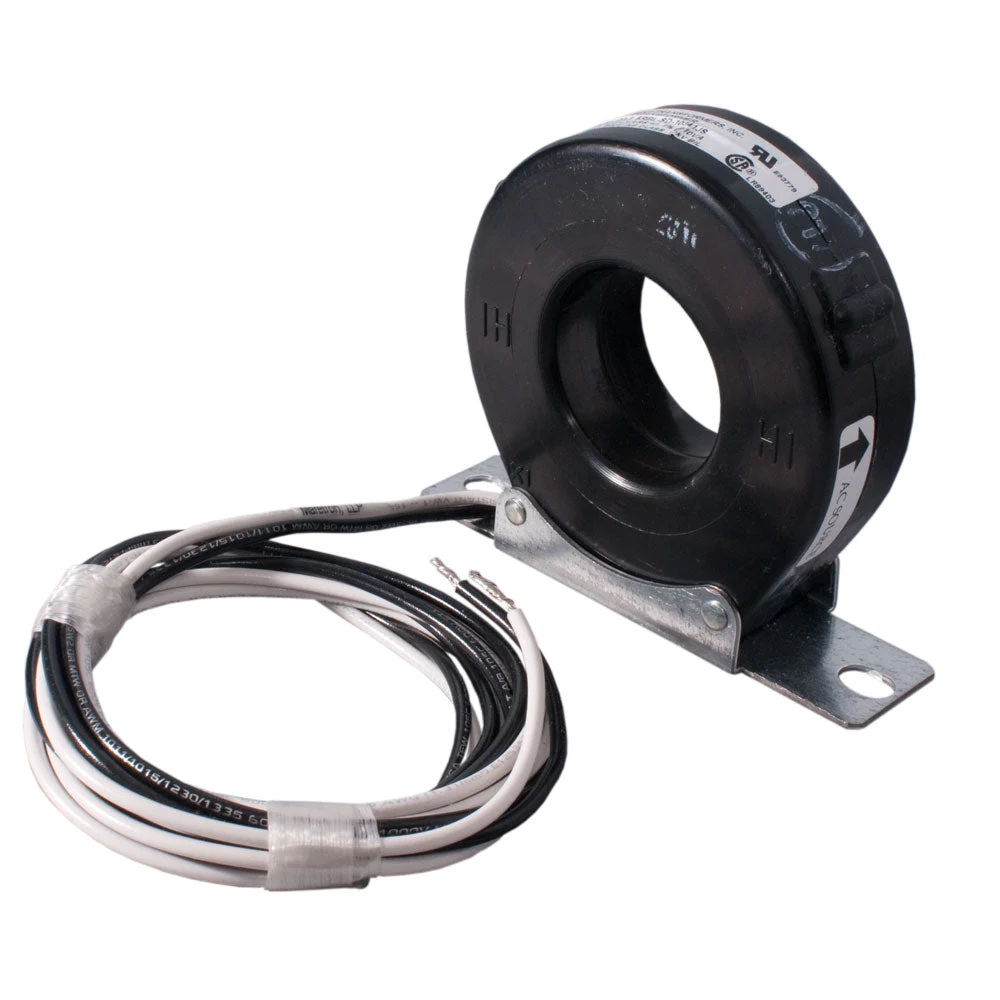

This Maretron 400 Amp AC Current transducer with Cable is an available ACM100 accessory extending the current range to 400 Amps.

Maretron M000612 Attributes

Current Transducer with Cable – 400 Amp
Maretron’s Current Transducer is used specifically with Maretron’s ACM100 Alternating Current Monitor.
Features:

• 400 Amp
• Includes Cable

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Current transformer with cable-400 Amp Maretron’s current transformer is specifically used with Maretron’s ACM100 AC current monitor. Features: 400 Amp including cable…

Electrical:

• Current Range: 400 Amps
• Output Ratio to Input: 400:5
• Frequency Range: 50-400Hz
• Insulation Level: 600 Volts, 10kV BIL full wave.
• Accuracy at 60Hz: ± 1%
• Burden VA at 60 Hz: 12.5
• Approximate weight: 0.5 lb.
• Flexible leads are UL 1015 105º C, CSA approved, #16 AWG, 24” long.

SKU: NVN-46963
MPN: M000612
UPC: 873804003177
