Description

Used in tight feeds not allowing “T” drops. Prevents signal reflection.

Two termination resistors are required on every NMEA 2000 network, one on each end of the trunk line. Normally, a male termination is used since male pins tend to point back to the power source. In cases where the gender is reversed, a female terminator may be required. The inline terminator is used where the network is terminated at a product.

Maretron ITCMCF Attributes

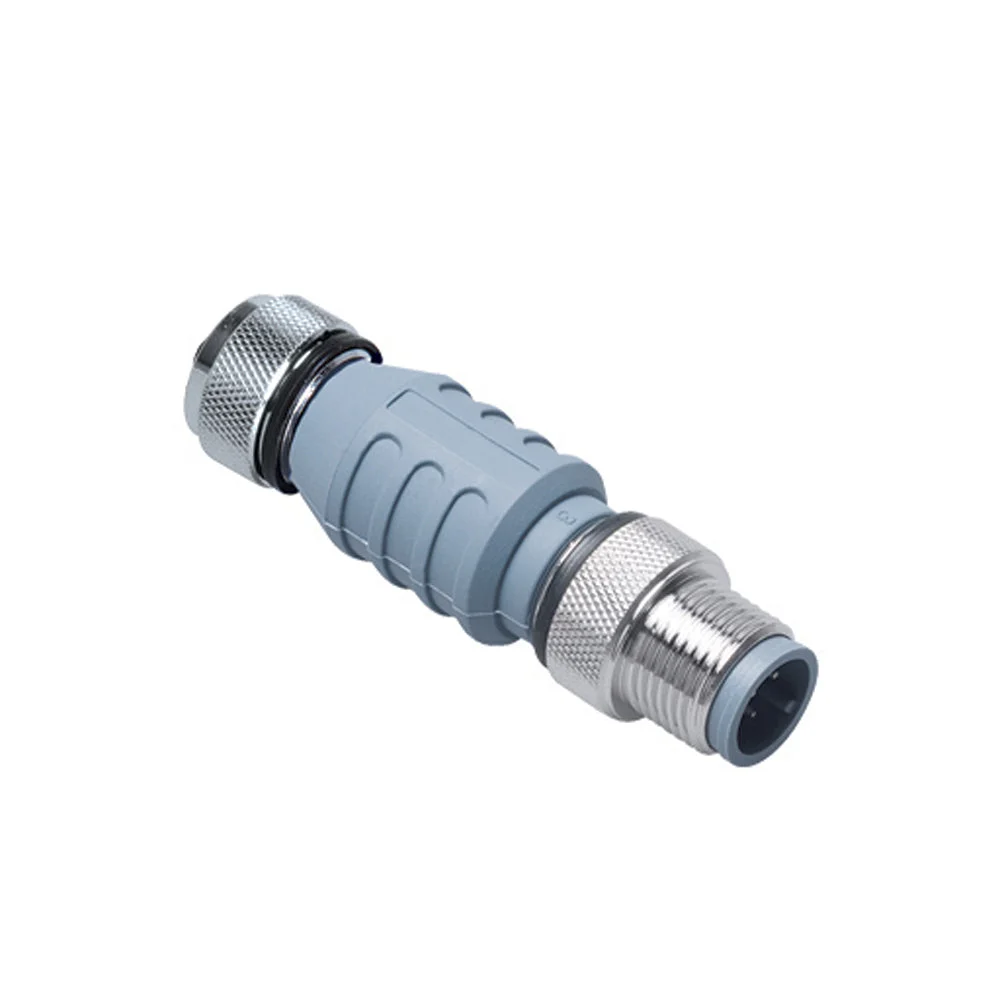

Micro Inline Termination Resistor
The inline terminator is used where the NMEA 2000® network is terminated at a product, for example the top of the mast at a weather instrument or GPS antenna/receiver. The inline terminator plugs directly into the product with the other end connected to the network cable

Micro Termination resistors usually terminate the network by plugging into a tee. The inline terminator doesn’t require a tee and easily fits within an instrument’s mounting pipe where a tee wouldn’t

Rugged, IP-68 rated connectors (submersible) for continued connection integrity in marine environment

Miniature termination resistors usually terminate the network by inserting a tee. The inline terminator does not require a tee, and can be easily installed in the mounting bracket of the instrument…

• Screw terminal connector for positive connections
• Molded Body Mat/Color: Thermoplastic PUR/Black
• Contact Carrier Mat/Color: Thermoplastic PUR/Black
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel

ELECTRICAL:

• Rated Voltage: 10-30 V DC
• Internal Resistor: 121 Ohms (1/4 W)

ENVIRONMENTAL:

• Protection Class: IEC IP68, NEMA 1,3,4,6P
• APPROVALS NMEA: NMEA 2000 APPROVED
• IEC: IEC 61162-3

SKU: NVN-31795
MPN: IT-CM-CF
UPC: 873804001678
