Description

A Micro Tee is used to tap into the trunk line for adding a drop connection. Tees can be mated with all other devices on the network of the same connector style. Provides male/female connections.

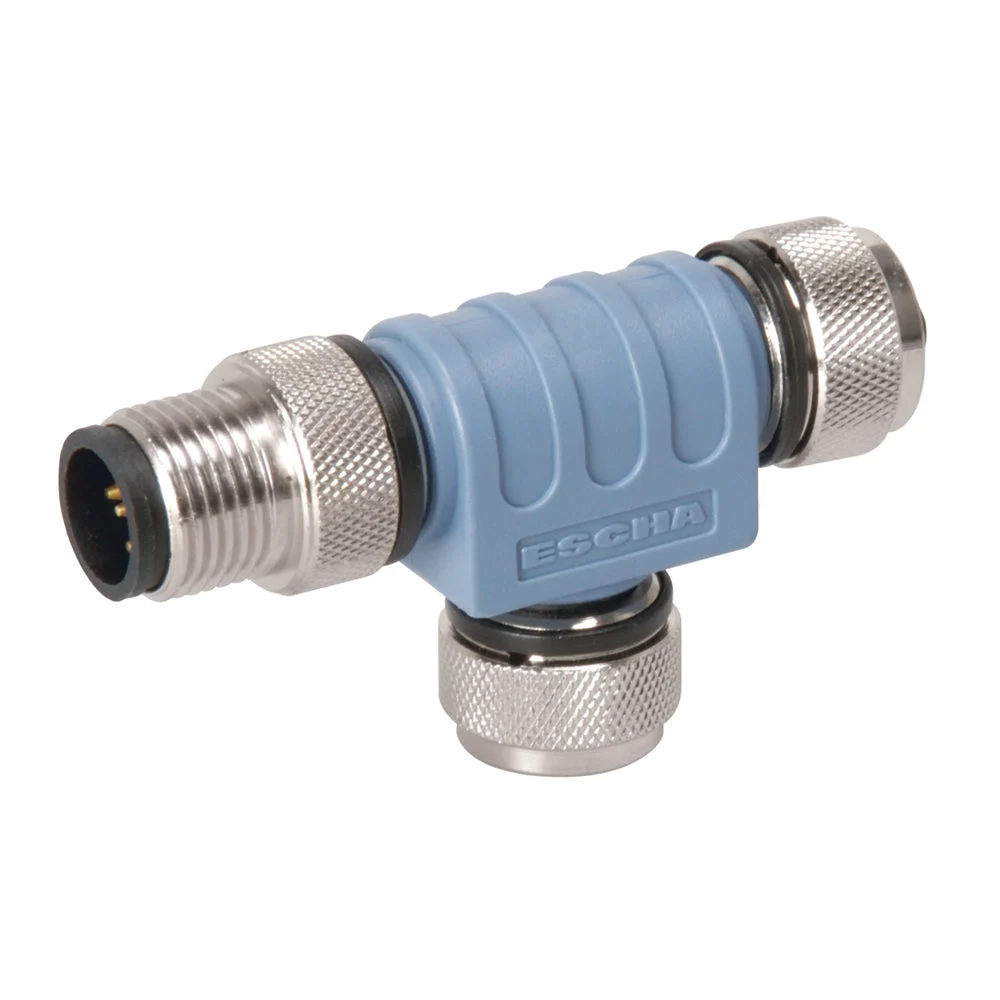

Micro Tee
A Tee is used to tap into the trunk line for adding a drop connection. The standard tee is also available with a cap for a protected diagnostic connection. Tees can be mated with all other devices on the network of the same connector style.

Male (left)
Female (right)
Female (Bottom)
Micro Tee Tee is used to insert a trunk line to add incoming connections. The standard tee also comes with a cover to protect the diagnostic connection. Tee can…

• Molded Body Mat/Color: Thermoplastic PUR/Blue
• Contact Carrier Mat/Color: PA 6 (Nylon)/Black
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel

ELECTRICAL:

• Rated Current: 4.0 Amps
• Rated Voltage: 60 V

ENVIRONMENTAL:

• Protection Class: IEC IP67, NEMA 1,3,4,6
• Operating Temperature: -40°C TO 80°C (-40°F to 176°F)
• APPROVALS NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

SKU: NVN-31789
MPN: CM-CF-CF
UPC: 873804001647
