Description

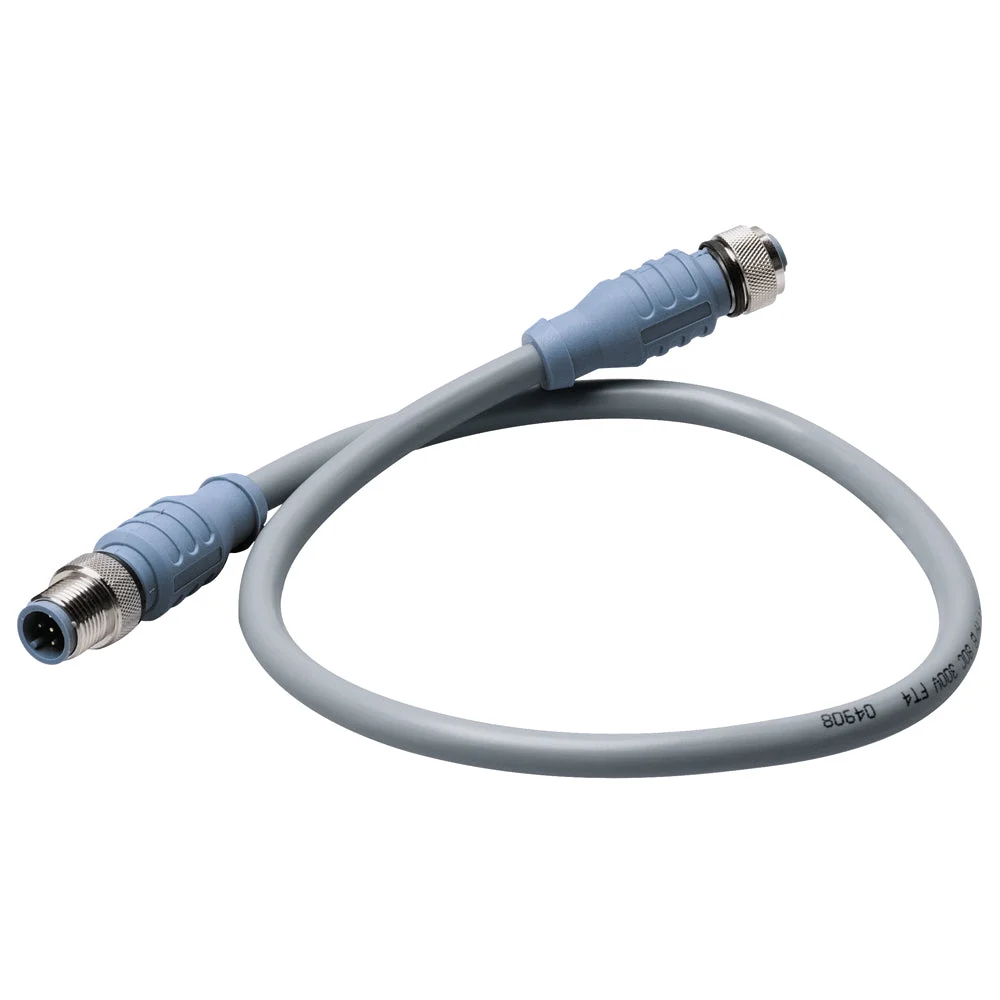

Maretron Mid Double-Ended Cordset – 7 M Gray
Mechanical:
Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
Connector Outside Diameter: 0.59″
Electrical
Current Rating: 4.0 Amps
Voltage Rating: 250 V
Cable
Outer Jacket Mat/Color: PVC/Gray
Conductor Insulation Material: PE (data pair), PVC (power pair)
Number of Conductors: 2×16 (1.29mm) AWG, Data 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)
ENVIRONMENTAL
Protection Class: IEC IP68, NEMA 1,3,4,6P
Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
APPROVALS
(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
NMEA: NMEA 2000 Approved
IEC: IEC 61162-3
Male to female. The double-ended cable set is used for the trunk line or the lead-in line, which can ensure safe connection and simple and time-saving installation. The connector’s key prevents errors -…
SKU: NVN-46997
MPN: DM-DG1-DF-07.0
UPC: 873804001838
