Description

The Mini Elbow is used in spots where it is impossible to bend a cordset around tight corners. The elbow easily connects to a tee or double-ended cordsets making 90 [degree] turns practical at the end or anywhere along the line. Mounting hole for secure fastening of cabling system. Waterproof seals for reliable connections. Nickel plated brass ideally suited for harsh marine environment.

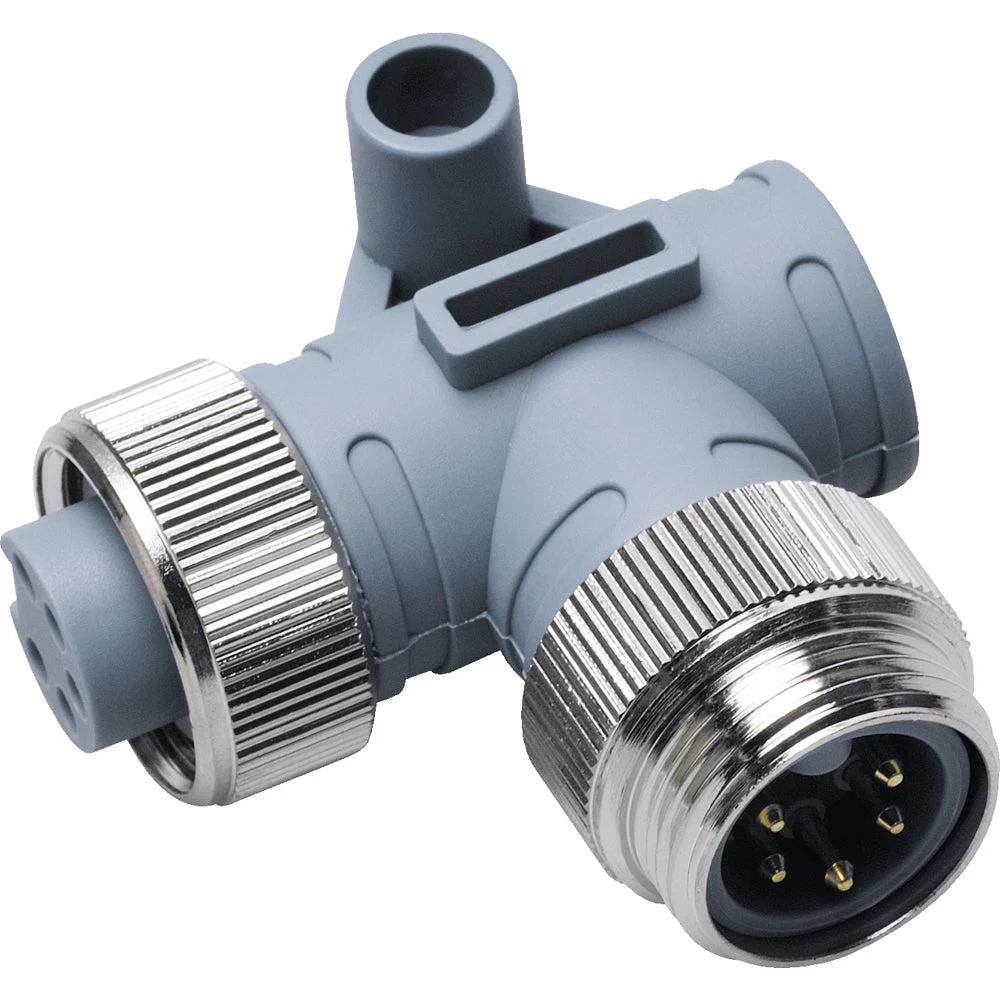

Mini 90° Male to Female Connector
The Mini Elbow is used in spots where it is impossible to bend a cordset around tight corners. The elbow easily connects to a tee or double-ended cordsets making 90 degree turns practical at the end or anywhere along the line.

• Mounting hole for secure fastening of cable system
• Waterproof seals for reliable connections
• Nickel plated brass ideally suited for harsh marine environment

This product is brand new, unopened and sealed in its original factory packaging. -Mini 90° male-to-female connector Mini Elbow is used where the wire cannot be bent.

• Molded Body Mat/Color: Thermoplastic PUR/Blue
• Contact Carrier Mat/Color: Thermoplastic PUR/Blue
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel

ELECTRICAL:

• Rated Current: 9.0 Amps
• Rated Voltage: 600 V

ENVIRONMENTAL:

• Protection Class: IEC IP67, NEMA 1,3,4,6 P
• Temperature Range: -40°c TO 80°C (-40°F to 176°F)

APPROVALS:

• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

SKU: NVN-33348
MPN: ELB-NM-NF
UPC: 873804002385
