Description
Mini bulk cable is primarily used as trunk cable, but it can also be used as drop lines. Bulk cable with field attachable connectors allows for maximum flexibility as cables can be made on the job to exact lengths. Meets and exceeds NMEA 2000 specifications for the highest reliability. Trunk or drop cable for use with Mini connectors. Used with field-attachable connectors to build exact length cables at the job site (not included).
Maretron NG1100C Attributes

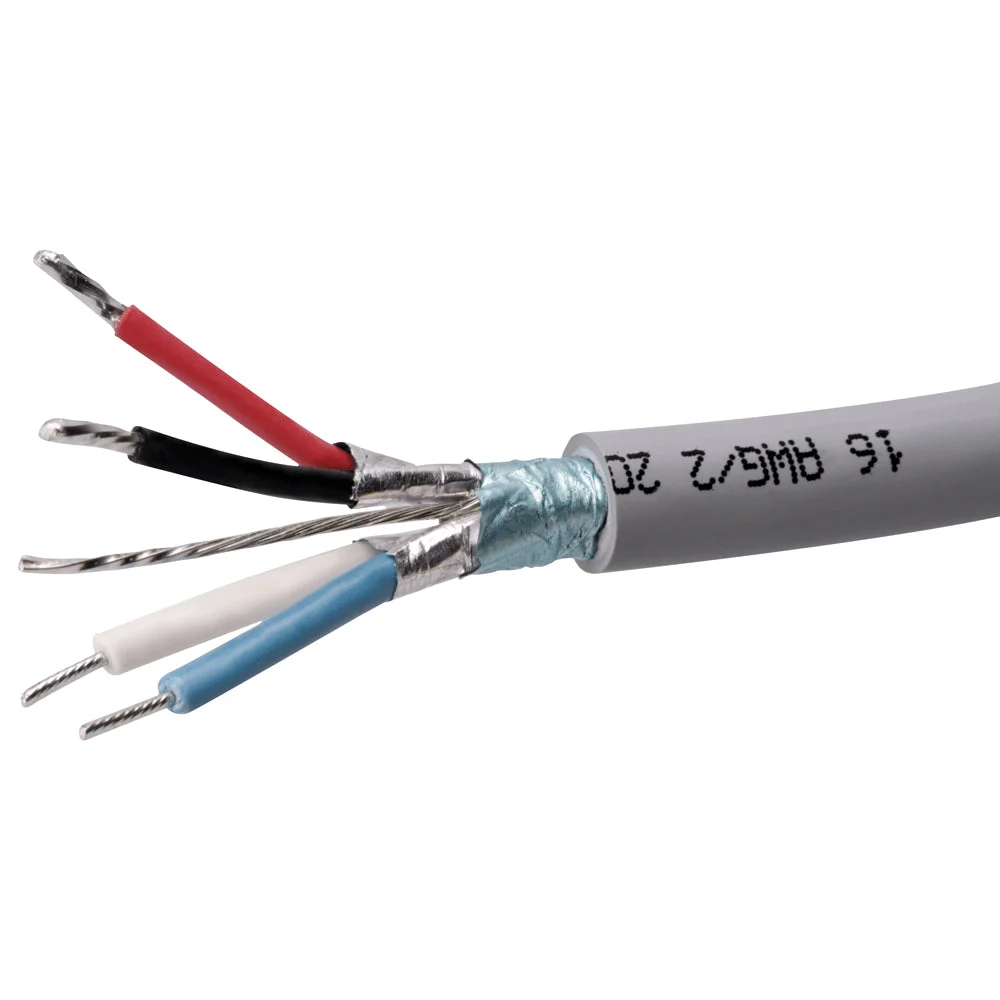

Maretron Mini Bulk Cable – 100 Meter – Gray
Specifications
Overall
Power Pair
Data Pair
Approvals
“What can be more fun and rewarding than boating on the open waters? This is an excellent solution for your boating needs. This product is great for use in all marine applications. It will satisfy the needs of both pleasure boat enthusiasts and ambitious yacht owners. Get this excellent product for your vessel and prepare to embark on a thrilling adventure.”
- Outer Jacket Mat/Color: PVC/Gray
- Insulation Material: PE (data), PVC (power)
- Construction: 2×15 (1.45mm) AWG, 2×18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire
- Shielding (3 Levels): Foil (overall), Foil (power pair), Foil (data pair)
POWER PAIR:
- Wire: 2×15 (1.45mm) AWG
- Resistance/Conductor: 3.44 Ohms/1000 ft max
- Max Amperage: 14 Amps
- Color Code: Red/Black
DATA PAIR:
- Wire: 2×18 (1.02mm) AWG
- Characteristic Impedance: 120 Ohms ± 10%
- Capacitance: 12 pF/1000 ft Max
- Color Code: White/Blue
APPROVALS:
- UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
- CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4
- NMEA: NMEA 2000 APPROVED
- IEC: IEC-61162-3
SKU: NVN-46966
MPN: NG1-100C
UPC: 873804003054
