Description

The Bulkhead Feed-Thru allows ease of installation through panels or bulkheads and establishes future connection points in a network installation. The bulkhead feed-thru also maintains the integrity of watertight bulkheads by providing a waterproof seal and connection. Features rugged keyways for positive alignment of connections.

Maretron BHFNMNF Attributes

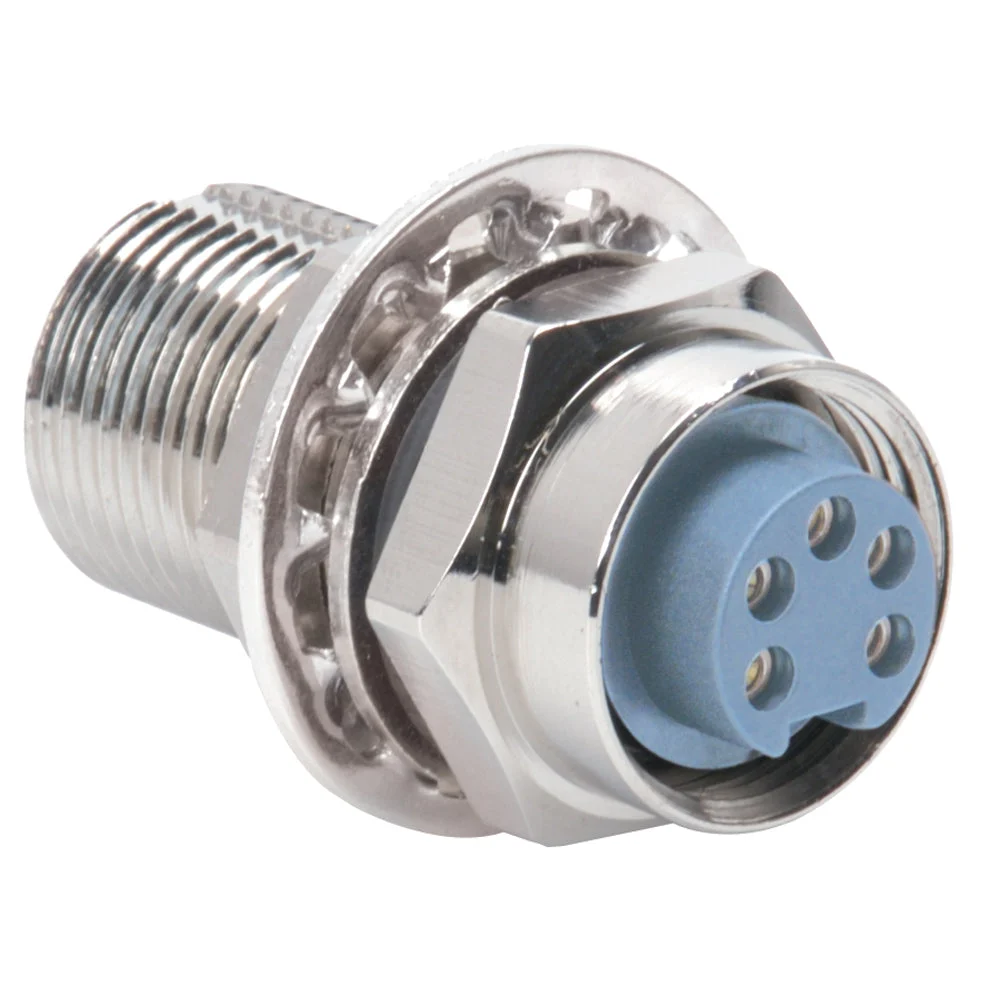

Mini Bulkhead Feed-Thru
The bulkhead Feed-Thru allow ease of installation through panels or bulkheads and establishes future connection points in a network installation. The bulkhead feed-thru also maintains the integrity of watertight bulkheads by providing a waterproof seal and connections

Features rugged keyways for positive alignment of connections

Waterproof rated to IP68

The through-wall feedthrough can be easily installed through the panel or through the wall, and establishes future connection points in the network installation. The feedthrough of the bulkhead is also…

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Housing Mat/Plating: Brass/Nickel
• Contact Mat/Plating: Brass/Gold
• Gasket Material: Nitrile (Buna N)
• Accommodates Wall (thick): .040” (1.0 mm) to .875” (22.2 mm)

ELECTRICAL:

• Voltage Rating: 600 V
• Max Amperage: 9.0 Amps
• Number of Conductors: 5×22 AWG (0.65mm)

ENVIRONMENTAL:

• Protection Class: IEC IP67
• Temperature Range: -40°C to 105°C (-40°F to 221°F)

APPROVALS:

• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

SKU: NVN-31812
MPN: BHF-NM-NF
UPC: 873804002293
