Description

Field-attachable connectors allow you to make field connections to bulk cable. The color-coded screw terminals match the individual wire colors found within the bulk cables. Rugged housing material designed to withstand harsh marine environments.

Maretron FANFST Attributes

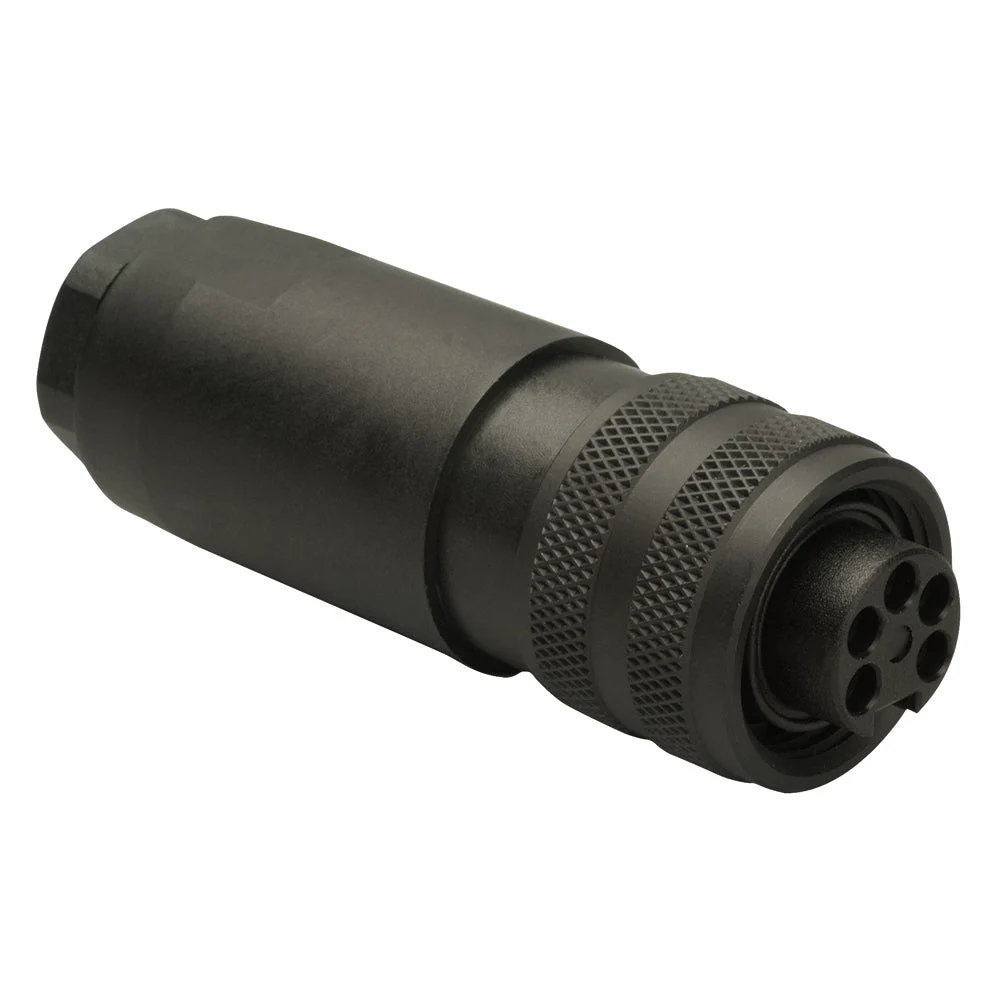

Mini Field-Attachable Connectors
Field-attachable connections allow you to make field connections to bulk cable. The color-coded screw terminals match the individual wire colors found within the bulk cables for error-free field installation

Color-coded screw terminators make for error-free field installation

Rugged housing material designed to withstand harsh marine environments

The product is made of high-quality materials and can provide you with many years of service. Use the most advanced technology to design and consider the customer. It will meet your needs…

• Housing Mat/Color: Glass Filled Nylon/Black
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Material: Anodized Aluminum
• Maximum Wire Size: 16 (1.29mm) AWG
• Termination Method: Screw Terminal

ELECTRICAL:

• Rated Current: 9.0 Amps
• Rated Voltage: 250 Volts

ENVIRONMENTAL:

• Protection Class: IEC IP67
• Temperature Range: -40°c TO 85°C (-40°F to 185°F)
• APPROVALS NMEA: NMEA 2000 Approved
• IEC: IEC-61162-3

SKU: NVN-31810
MPN: FA-NF-ST
UPC: 873804002279
