Description

Field-attachable connectors allow you to make field connections to bulk cable. The color-coded screw terminals match the individual wire colors found within the bulk cables. Rugged housing material designed to withstand harsh marine environments.

Maretron FANMST Attributes

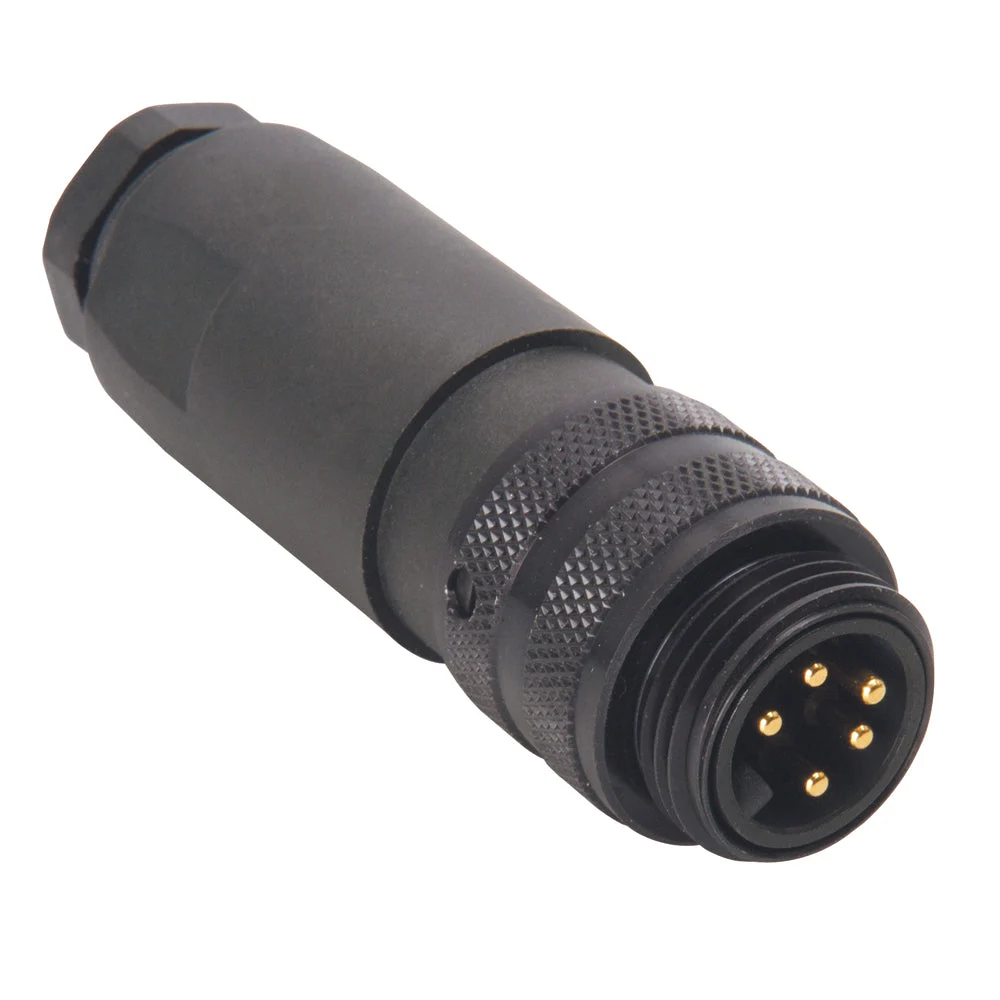

Mini Field-Attachable Connectors
Field-attachable connections allow you to make field connections to bulk cable. The color-coded screw terminals match the individual wire colors found within the bulk cables for error-free field installation

Color-coded screw terminators make for error-free field installation

Rugged housing material designed to withstand harsh marine environments

We love outdoor activities and know that having the best equipment is essential for any new adventure. Our selected collection focuses on top brands from the marine, leisure and outdoor markets…

• Housing Mat/Color: Glass Filled Nylon/Black
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Material: Anodized Aluminum
• Maximum Wire Size: 16 (1.29mm) AWG
• Termination Method: Screw Terminal

ELECTRICAL:

• Rated Current: 9.0 Amps
• Rated Voltage: 250 Volts

ENVIRONMENTAL:

• Protection Class: IEC IP67
• Temperature Range: -40°c TO 85°C (-40°F to 185°F)
• APPROVALS NMEA: NMEA 2000 Approved
• IEC: IEC-61162-3

SKU: NVN-31811
MPN: FA-NM-ST
UPC: 873804002286
