Description

Mini Power Cordset features 2 power conductors and 2 ground conductors. Provides power to the mini powertap.

Maretron NM4P01 Attributes

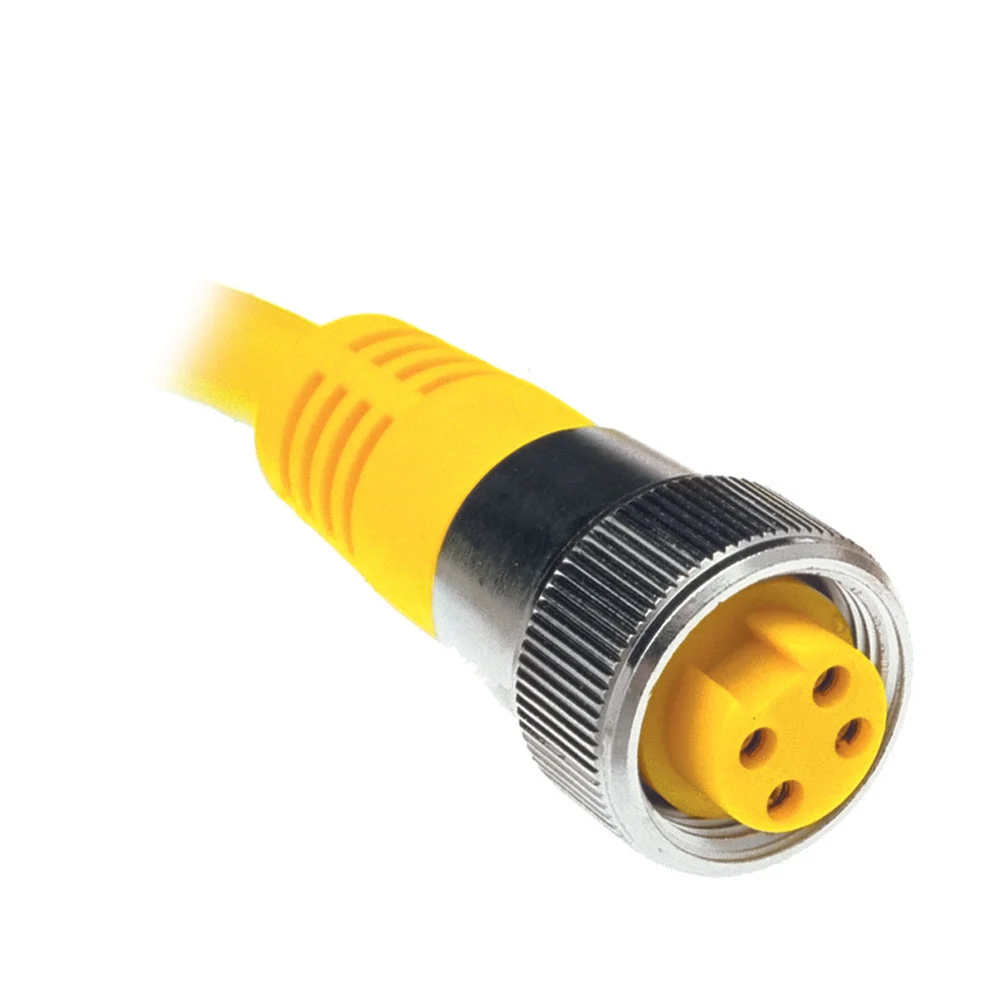

Mini Power Cordset – 2 Power & 2 Ground To Female 1M

• 2 power and 2 ground to female
• 1 meter

The product is made of high-quality materials and can provide you with many years of service. Use the most advanced technology to design and consider the customer. It will meet your needs…

• Molded Body Mat/Color: Thermoplastic PUR/Yellow
• Outer Jacket Mat/Color: PVC/Yellow
• Contact Carrier Mat/Color: Thermoplastic PUR/Yellow
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Conductor Insulation Mat: PVC

ELECTRICAL:

• Conductors: 4×16 (1.29mm) AWG
• Current Rating: 9.0 Amps
• Voltage Rating: 600 V

ENVIRONMENTAL:

• Protection Class: IEC IP67, NEMA 1,3,4,6P
• Temperature Range: -40°C to 105°C (-40°F to 221°F)

APPROVALS:

• NMEA: NMEA 2000 APPROVED
• IEC: IEC 61162-3

SKU: NVN-31829
MPN: NM4P-01
UPC: 873804002422
