Description

A Tee is used to tap into the trunk line for adding a mini drop connection. Gold Contacts for greatest reliability.  Keyed connectors for error-free connections.

Maretron NMNFNF Attributes

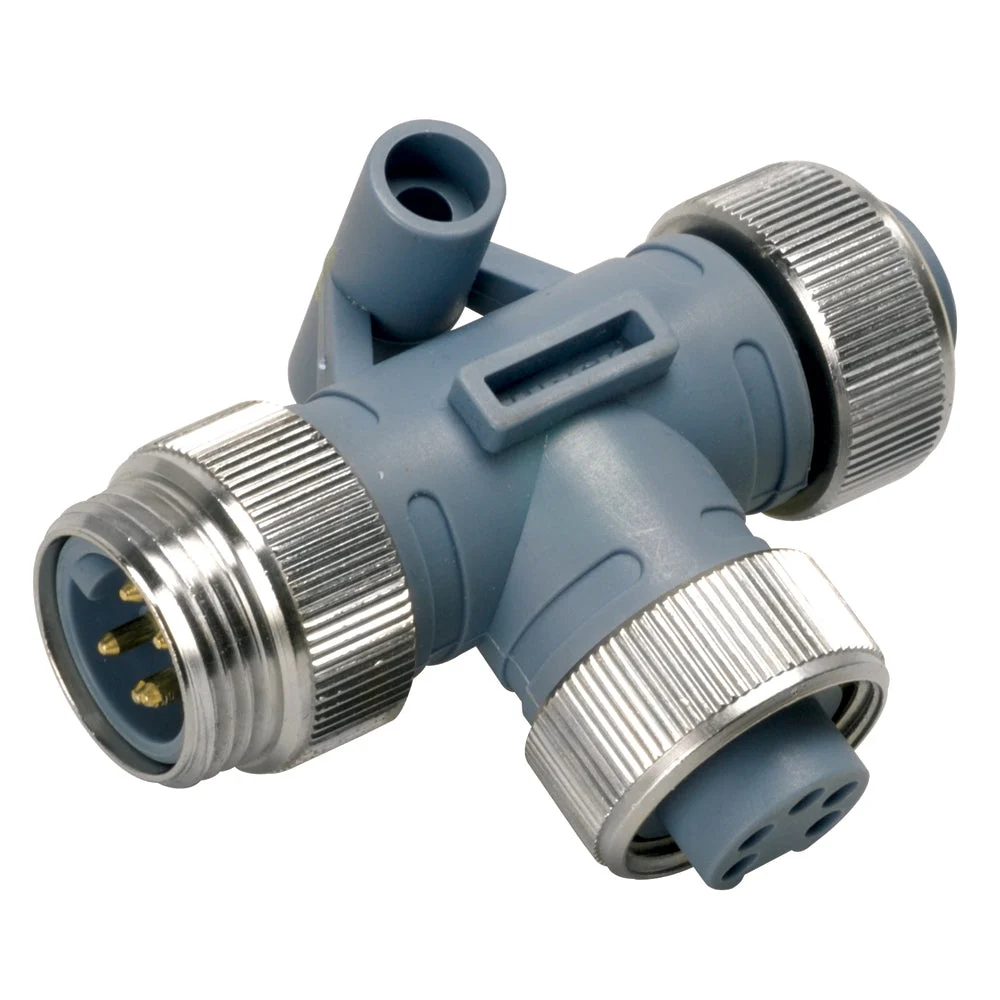

Mini Tee
A Tee is used to tap into the trunk line for adding a drop connection.

Gold contacts for greatest reliability

Keyed connectors for error-free connections

Male (left)
Female (Bottom)
Female (right)
The mini T-shape T-shape is used to insert the trunk line to add branch connections. Gold-plated contacts to ensure the highest reliability of the key connector, to achieve error-free connection of external threads (left)…

• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel

ELECTRICAL:

• Rated Current: 9.0 Amps
• Rated Voltage: 600 V

ENVIRONMENTAL:

• Protection Class: IEC IP67, NEMA 1,3,4,6P
• Temperature Range: -40°C to 80°C (-40°F to 176°F)

APPROVALS:

• NMEA: NMEA 2000 APPROVED
• IEC: IEC 61162-3

SKU: NVN-31813
MPN: NM-NF-NF
UPC: 873804002309
