Description

Some products use inexpensive nylon connectors and when connected with metal connectors, the nylon threads can be damaged. This cable eliminates the problem by allowing nylon to nylon connections and metal to metal connections. NMEA 2000 Approved.  Waterproof rated to IP67.

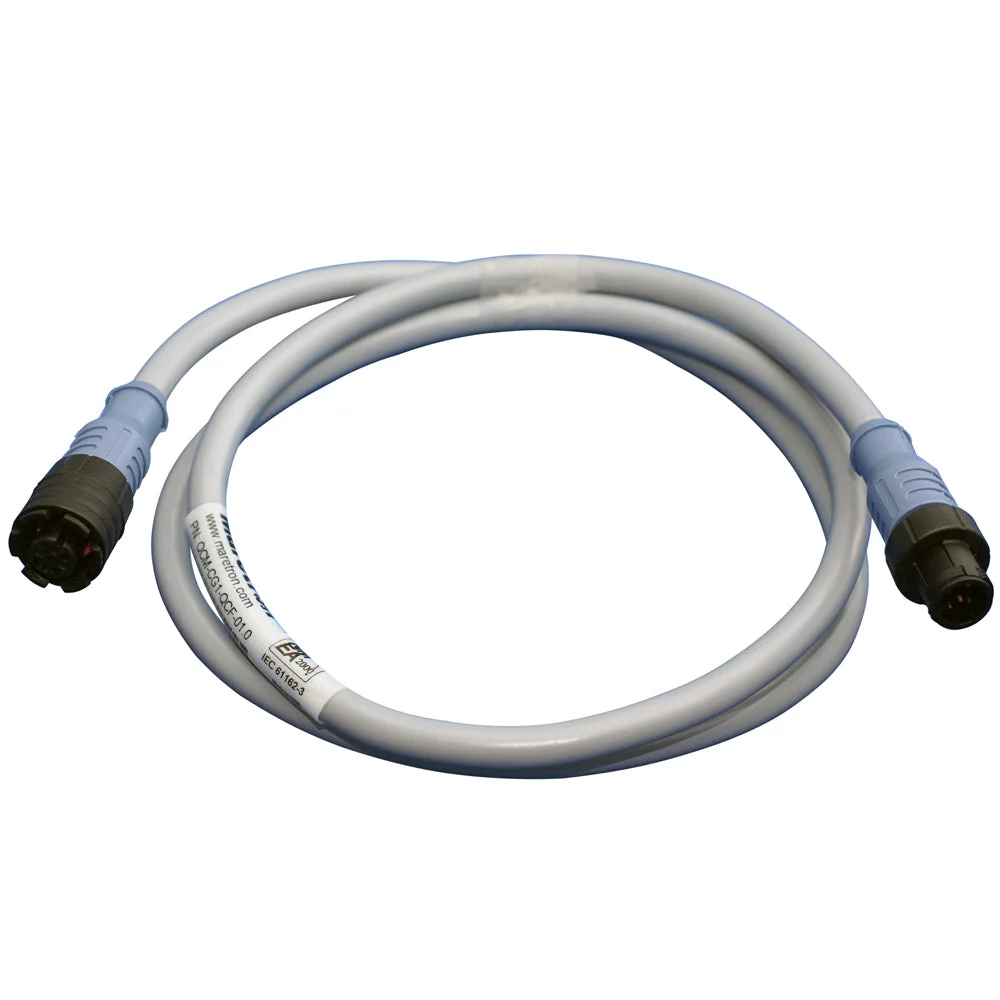

Nylon to Metal Connector Cable
Some products use inexpensive nylon connectors and when connected with metal connectors, the nylon threads can be damaged. This cable eliminates the problem by allowing nylon to nylon connections and metal to metal connections.

• NMEA 2000® Approved
• Waterproof rated to IP67

Nylon-to-metal connector cables. Some products use cheap nylon connectors. When connecting with metal connectors, the nylon threads may be damaged. This cable eliminates…

• Molded Head Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Carrier Mat/Color: Thermoplastic PUR/Black
• Contact Mat/Plating: Brass/Gold
• Snap-Lock Mat/Color: POM/Black

ELECTRICAL:

• Rated Current: 4.0 Amps
• Rated Voltage: 250 V

CABLE:

• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Mat: HDPE (Data), SRPVC (Power Pair)
• Number of Conductors: 4X22 (0.65mm) AWG, 22 (0.65mm) AWG Drain Wire
• Shielding (3-Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

ENVIRONMENTAL:

• Protection Class: IEC IP67
• Temperature Range: -40°C to 80°C (-40°F to 176°F)

APPROVALS:

• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

SKU: NVN-45597
MPN: QCM-CG1-QCF-01
UPC: 873804700267
