Description

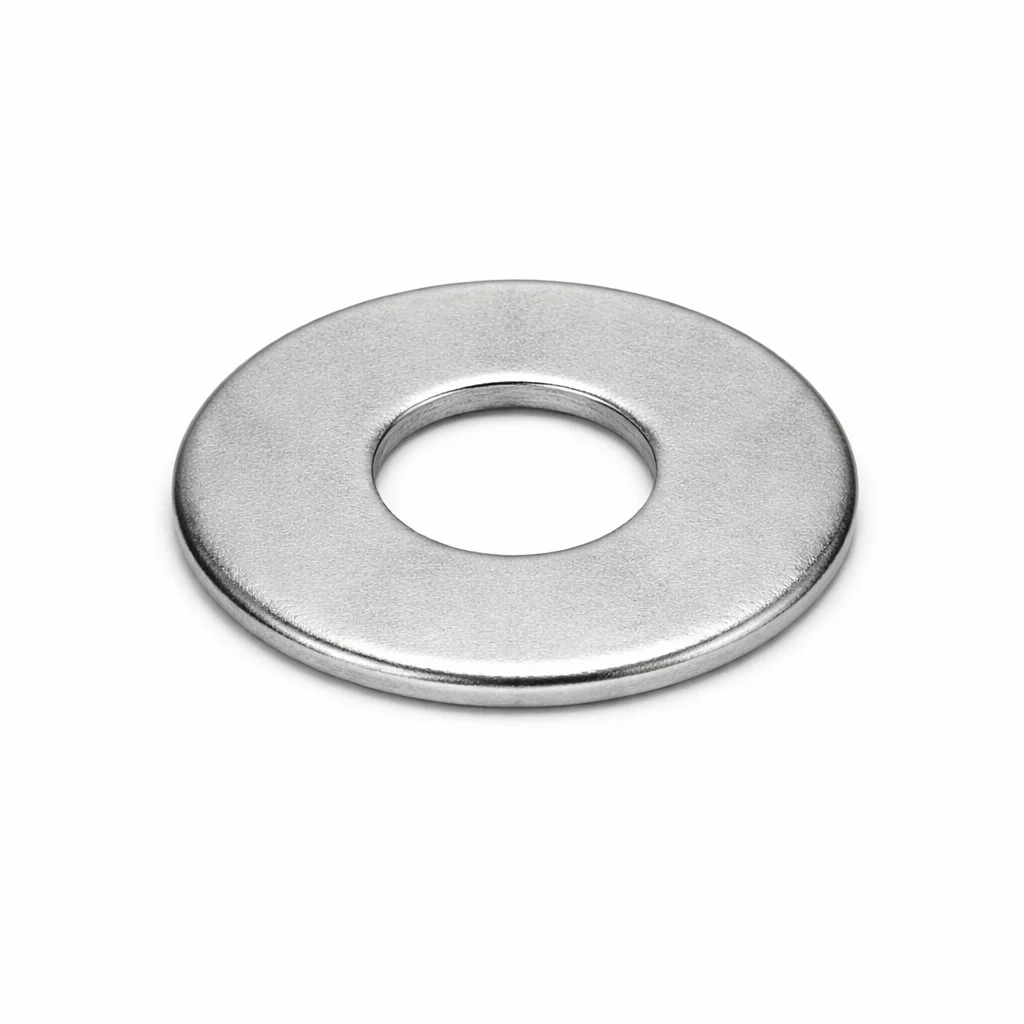

The Mercury MerCruiser Quicksilver Rear Engine Mount Washer 12-32834 is an OEM structural washer used in select MerCruiser rear engine mount, flywheel housing, and transom assembly applications. It helps support proper engine mounting, spacing, and vibration control where the engine is secured to the sterndrive mounting system.

Key Features

• Genuine Mercury/Quicksilver rear engine mount washer
• Part number: 12-32834
• Also referenced as 32834
• Size: 0.9375″ ID x 1.750″ OD x 0.172″ thick
• Approximate fractional size: 15/16″ ID x 1-3/4″ OD x 11/64″ thick
• GTIN / UPC: 0745061074453
• Used in select rear engine mount, flywheel housing, and transom assembly locations

Engine Compatibility

Used across select MerCruiser sterndrive applications, including Alpha One, Alpha One Gen II, and Bravo I / II / III drive packages. Common engine families include 3.0L / 3.0LX, 4.3L V6, 5.0L, 5.7L / 350 Mag, 7.4L / 454, 496 Mag, and 502 Mag configurations. Also used on select Mercury 75 HP, 80 HP, 90 HP, 100 HP, and 115 HP EFI 4-stroke outboard applications.

Serial Number Fitment Notice

Verify fitment by engine or drive serial number, mount diagram, and original washer part number before ordering. Rear mount hardware can vary by engine package, flywheel housing, transom assembly, and production range.

When This Part Needs Replacement

Replace this washer if it is crushed, split, deteriorated, missing, distorted, oil-soaked, corroded, or damaged during rear mount or transom assembly service.

Installation Notes

Install in the correct rear engine mount stack-up shown in the Mercury parts diagram. Inspect the rear mounts, mount bolts, flywheel housing, transom assembly hardware, alignment, and surrounding components before reassembly. Follow Mercury service procedures for torque and engine alignment.

Alternate/Superseded Part Numbers

Replaces Mercury 12-934161, 12-93416, and 8M2001219. Primary references: 12-32834 and 32834.

Parts Desk Insight

Rear engine mount hardware affects more than fastening. The washer stack-up helps maintain proper spacing and alignment, so replacing missing or compressed washers can help prevent vibration, alignment issues, and premature coupler wear.
