Description

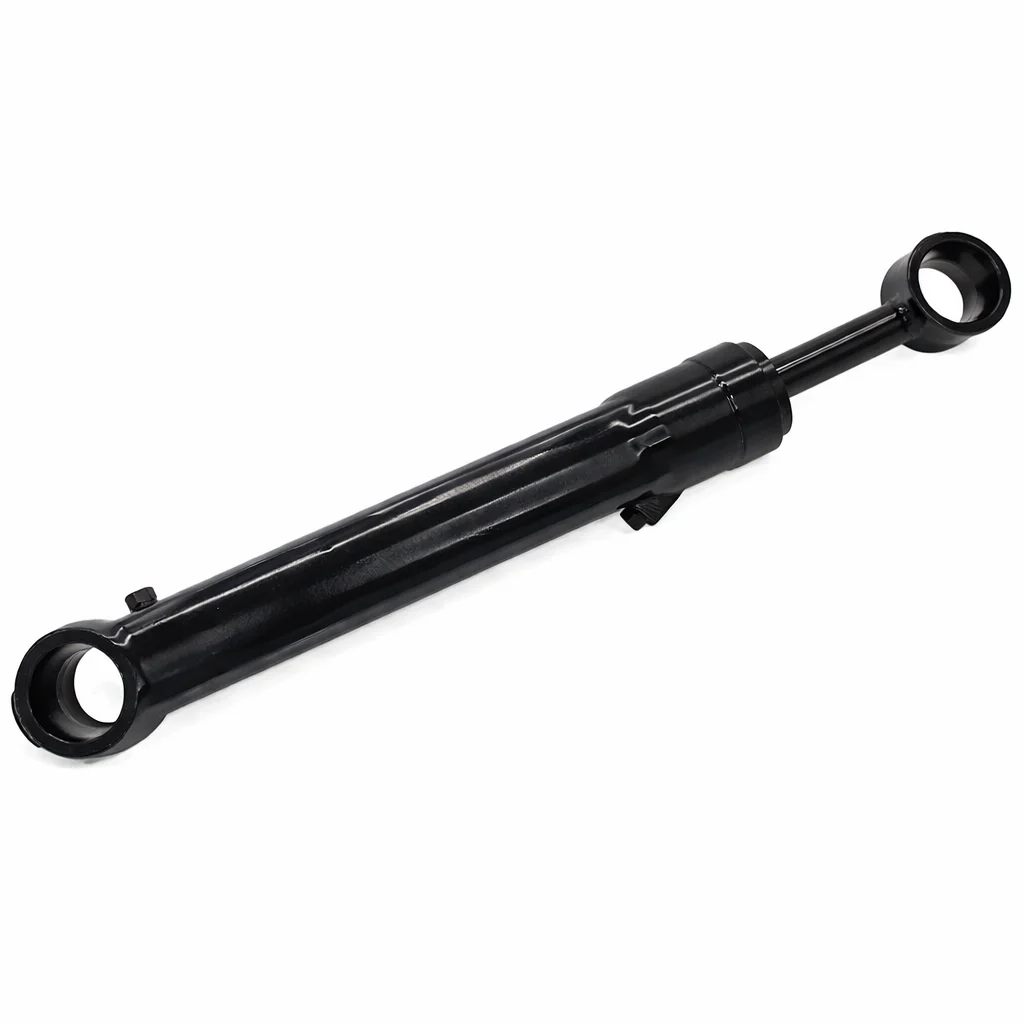

Mercury / MerCruiser Quicksilver Trim Cylinder Assembly — Port — 8M0132609

The Mercury Quicksilver 8M0132609 Trim Cylinder Assembly (Port) is a genuine OEM hydraulic power trim cylinder used on MerCruiser Bravo sterndrives. This hydraulic ram controls the vertical trim angle of the sterndrive, allowing the operator to adjust drive position for optimal performance, handling, and efficiency.

---

Key Specifications

• Part Number: 8M0132609

• Component Type: Power trim cylinder assembly (port side)

• System: Hydraulic power trim and tilt

• OEM Brand: Mercury Marine / Quicksilver

• Weight: approx. 10 lb

---

Compatible Drives / Applications

Commonly used on MerCruiser Bravo sterndrive systems, including:

• Bravo One

• Bravo Two

• Bravo Three

• Bravo SeaCore drives

Typical compatibility includes Bravo drives from 1988 through current production depending on serial range.

---

Function

The trim cylinder assembly is part of the sterndrive hydraulic trim system and raises or lowers the sterndrive when hydraulic pressure is applied. Proper operation allows the operator to:

• Adjust drive trim angle for performance and fuel efficiency

• Lift the drive for shallow water operation or trailering

• Improve boat handling and planing characteristics

Hydraulic trim cylinders must withstand high pressure, vibration, and marine corrosion, making OEM components important for durability and reliability.

---

Service Notes

A worn or damaged trim cylinder may cause:

• Hydraulic fluid leaks

• Drive drifting down while underway

• Slow or uneven trim movement

• Difficulty maintaining proper trim position

Replacement restores proper hydraulic trim system operation.

---

Fitment Tip:
Always verify compatibility using the sterndrive model and serial number. Port and starboard trim cylinders are different parts, and the correct assembly depends on the exact Bravo drive configuration.

OEM parts ship same or next day for fast Canada wide shipping.

Technical Specifications:

• Type: Hydraulic trim cylinder assembly (port side)
• Compatible with: Mercury MerCruiser sterndrive systems
• Part Number: 8M0132609
