Description

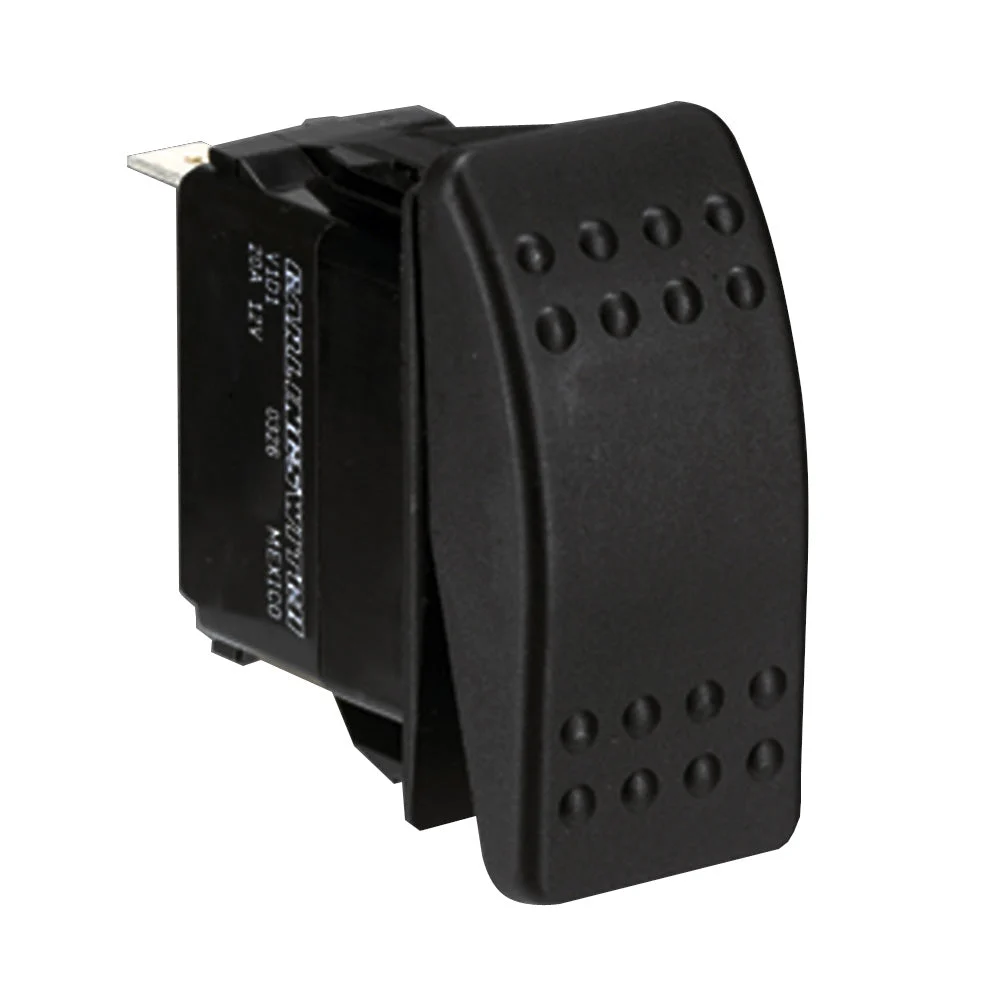

Rocker Switch (Waterproof Contura)

• Single or double pole, and maintaining or momentary configurations are available
• Sealed IP68 rated per IEC 529
• Ignition protection construction meets requirements of UL 1500 and ISO 8846
• Black textured actuators (hard surface with bumps)
• Red incandescent 12VDC 80mA Status Indicators
• Contacts are rated at 12VDC 20A, or 24VDC 15A (ABYC E-11.12.1.1)
• DC moisture resistant Per Mil-Std 202F, Method 107F
• Optional rubber gaskets provide a watertight panel seal meets IP67 (P/N 004-176
• 1/4″ male tab terminals are standard without barries (ABYC E-11-14.5.4 Exception)
• Hole plug – Black (P/N 001-295)
  The rocker switch waterproof contura unipolar or bipolar, as well as the maintenance or instantaneous configuration, are all sealed, the protection level is ip68, and it meets the IEC 529 ignition protection structure…
  SKU: NVN-29785
  MPN: 004-246
  UPC: 602290100271
