Description

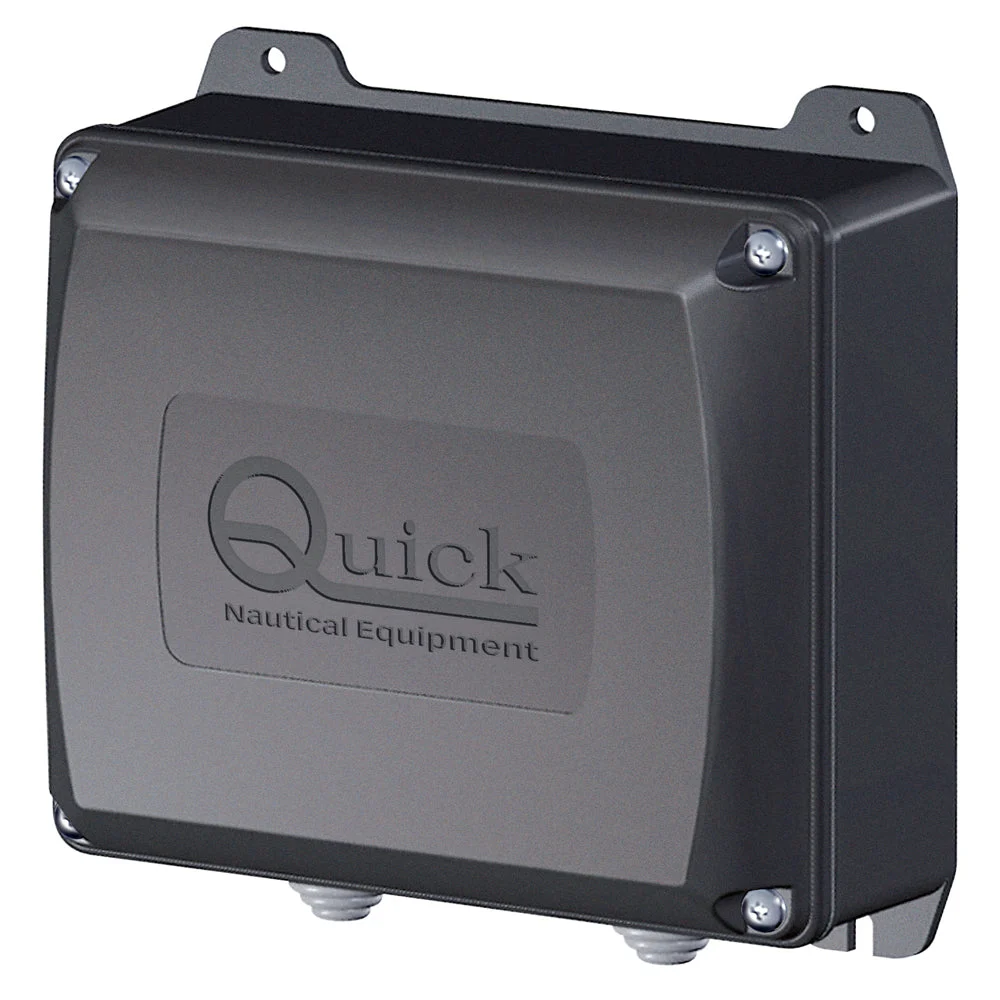

Quick Radio Remote Control Receiver 913Mhz
Features

• Number of relays – 2
• Full power range (from 10.5 to 31Vdc).
• Relay current carring capacity – 15 A
• Power absorption in stand-by mode – 25 mA
• Microcontroller-operated functions.
• FSK modulation and carrier frequency 913Mhz
• Operating temperatures from -15°C to +70°C
• Indication of the system operating status, errors and problems by means of LED and seven-segment display
• Protection against polarity inversion
• Protection against low battery
• 50 transmitters can be stored
• Translation mode to activate more receivers, installed in different spots, by means of one transmitter
• Programmable digital filter

Number of functional relays 2 The full power range is from 10.5 to 31Vdc. Relay current carrying capacity 15 A power absorption in standby mode 25 m-A single-chip operation function…
SKU: NVN-50152
MPN: FRRRCR902000A00
UPC: 8057090095005
