Description

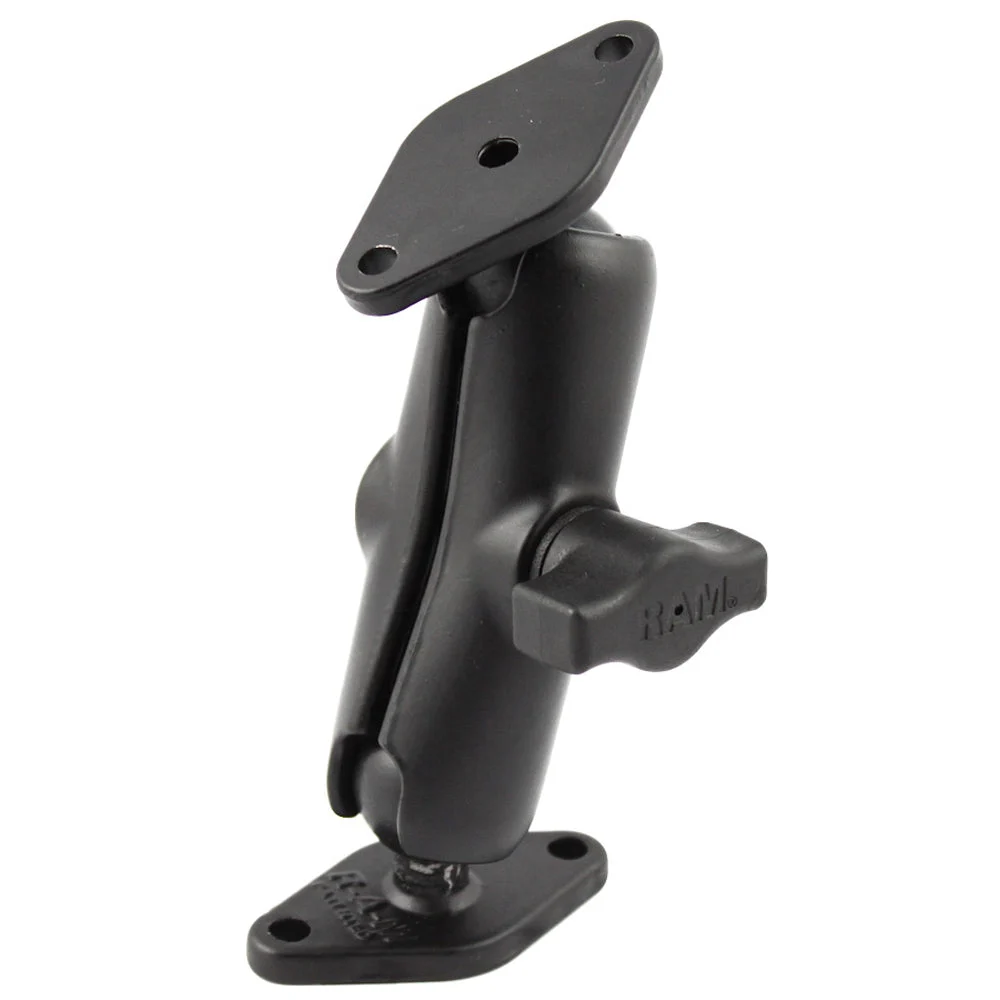

RAM 1″ Diameter Ball Mount w/2 Diamond Bases
The RAM-B-102U consists of a double socket arm and two diamond bases. The diamond bases measure 2.43″ x 1.31″ diamond base and contain two holes 1.912″ from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.
Material:
Powder Coated Marine Grade Aluminum
Ball Size:
1″ Rubber “B” Ball Size
Note:
The “U” in the part number reflects product packaged in poly bag.
RAM-B-102U consists of a double sleeve arm and two diamond bases. The size of the diamond base is 2.43″ x 1.31″. The diamond base has two holes 1.912″ from the center to the center,…
SKU: NVN-45510
MPN: RAM-B-102U
UPC: 793442101021
