Description

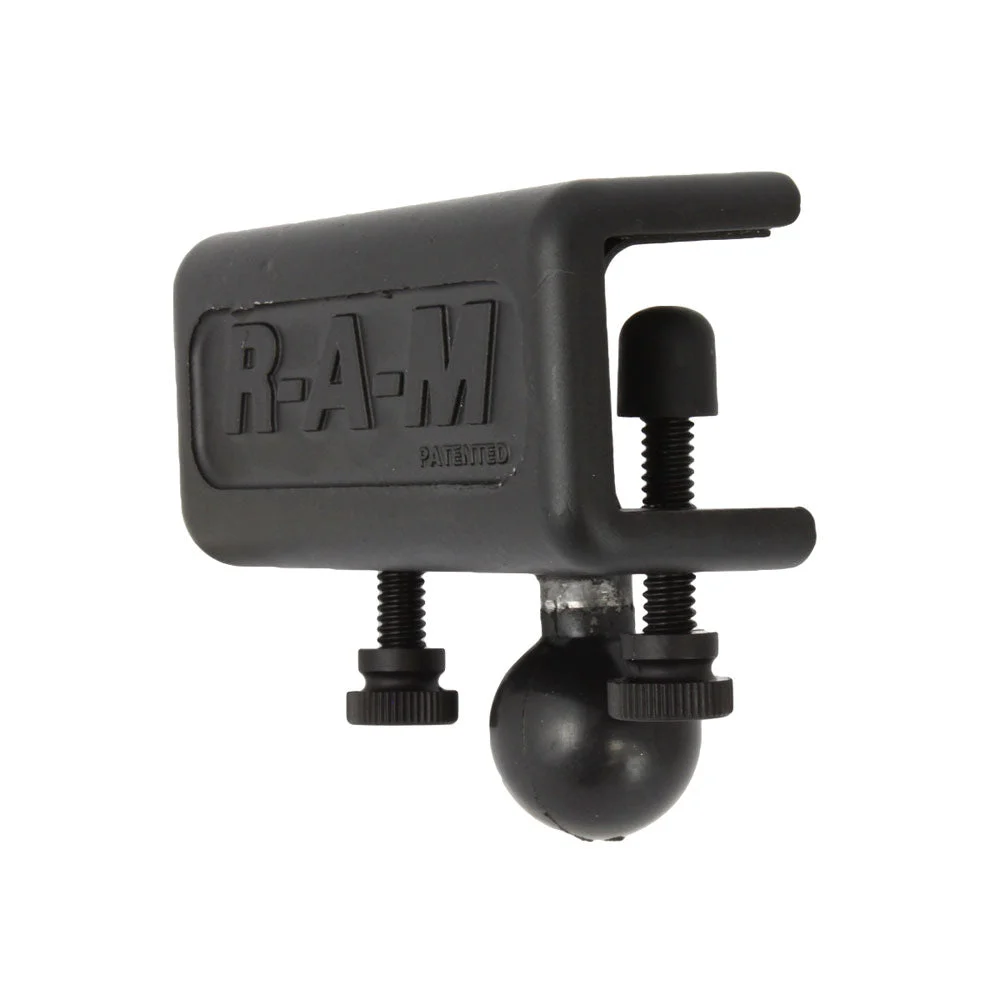

RAM 1″ x 1″ U-Channel Clamp with 1″ Ball
The RAM-B-259U is designed to mount to the lip edge of a flat surface up to 1″ thick. Popular mounting edges include a car side window edge lip or glare shield on an airplance. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1″ diameter rubber ball is connected to the base allowing you to connect a RAM 1″ diamter arm socket and connection plates to create the perfect mount for your application.
Mount will attach to flat surfaces with the following dimensions:

• Min: 4.4mm / 0.17″
• Max: 28.0mm / 1.12″

Material:
Powder Coated Marine Grade Aluminum
Ball Size:
1″ Rubber Ball “B” Size
Note:
The “U” in the part number reflects product packaged in poly bag.
The RAM-B-259U is designed to be installed on a flat lip with a thickness of no more than 5/8 inches. Popular mounting edges include car side window edge lip on airplane or anti-glare shield…
SKU: NVN-42010
MPN: RAM-B-259U
UPC: 793442102592
