Description

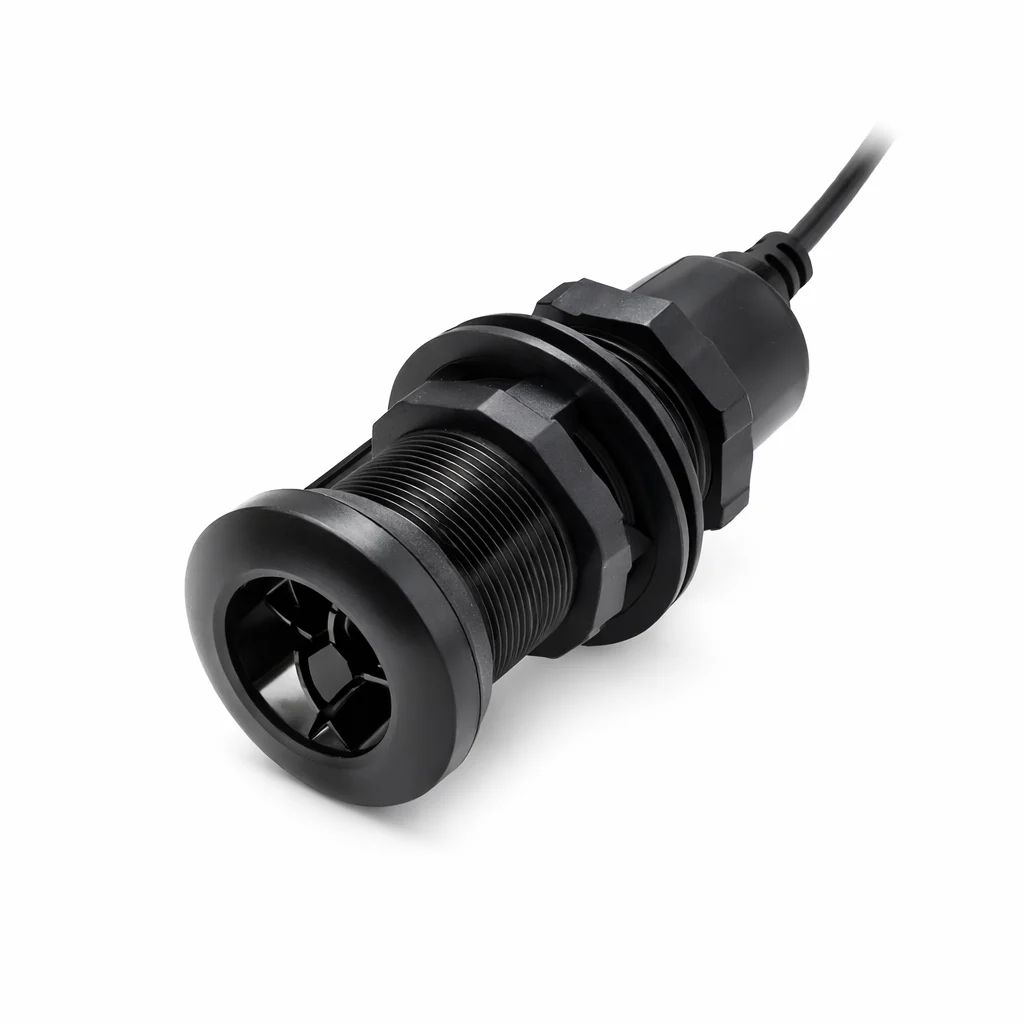

New Gen 2 paddlewheel responds to speeds low as 0.3 knots, and becomes linear at 0.6 knots. The DST810 Smart Multisensor provides accurate depth, speed-through-water, heel and trim, pitch and roll, and water temperature from one installed instrument.

Key Features:

• New Gen 2 paddlewheel responds to speeds low as 0.3 knots, and becomes linear at 0.6 knots
• Speed readings stay accurate and smooth through 45 knots
• 5 Hz speed output (5X/second) for visibly smoother data
• Integrated attitude sensor for simple attitude calibration to correct for off-center mounting
• Wireless connectivity to Airmar’s CAST App has new user-friendly benefits:
  • Simple, intuitive calibration regardless of the instrument brand or model that is on board
  • Basic and advanced heel-compensated speed calibrations across the speed range
  • Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds
  • Enable and disable PGN’s and set offset and output rates
• Depth, speed-through-water, heel and trim, pitch and roll, and water temperature from one installed instrument

Part Number: RAY E70667
