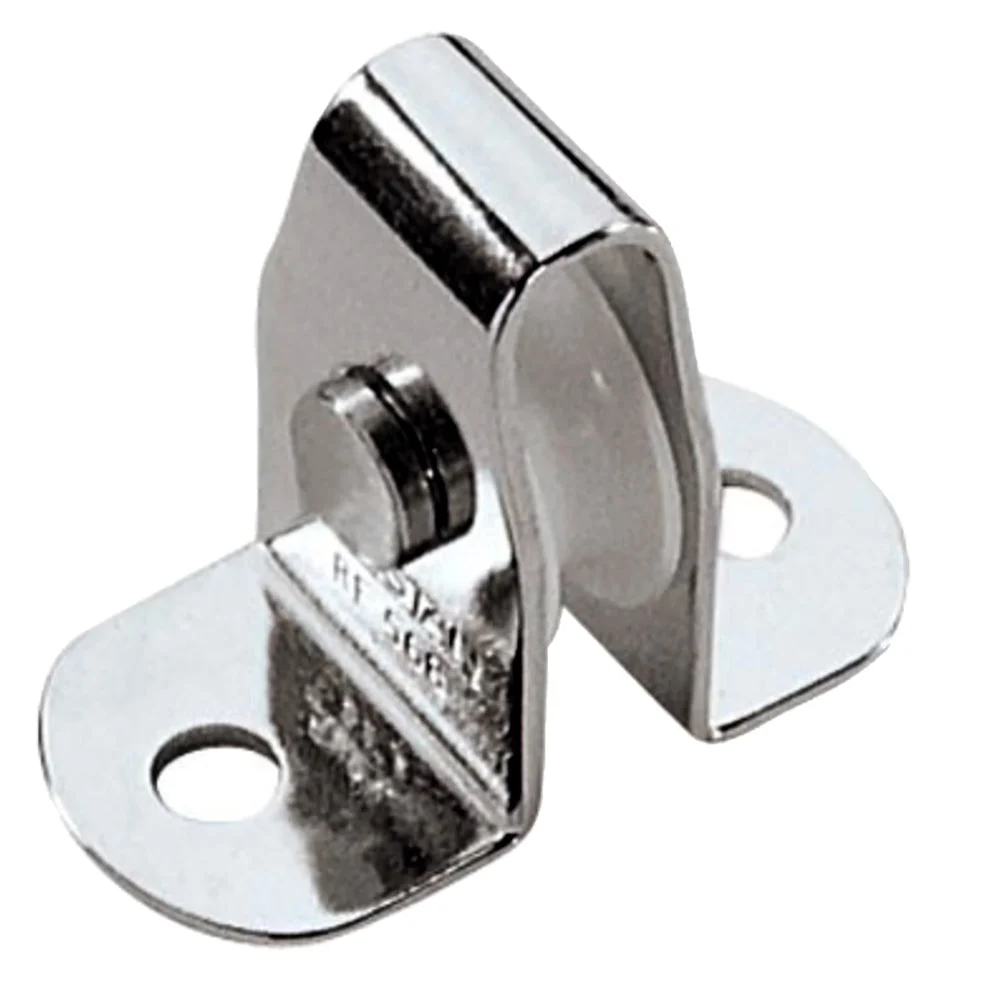

RF568 Lead Block

Lead blocks are a low profile solution for leading halyards or other rig sail controls back to cleats or jammers.When mounted in an inverted position, are frequently used as upright leads.

Features:

• Removable sheave
• The external tabs can be formed to fit the spar profile before fastening

Specifications:

• Sheave: 19mm
• Max. Rope: 5mm
• Max Cable: -mm
• Fastener: 5.0mm
• M.W.L.: 250kg
• B.L.: 550kg
• Weight: 20g

Applications:

• Typically used in dinghy spars for control lines such as outhauls

Materials:

• U.V. stabilised Acetal sheave
• Grade 316 stainless steel load housing

Durable, water-repellent and UV-resistant acrylic, with mesh drainage at the bottom. The hook and loop connection system makes installation easy. Weight 5-1/8 inches (width) x 5-1 inches (height) x 3-9/16 inches (depth)…
SKU: NVN-76717
MPN: RF568
