Description

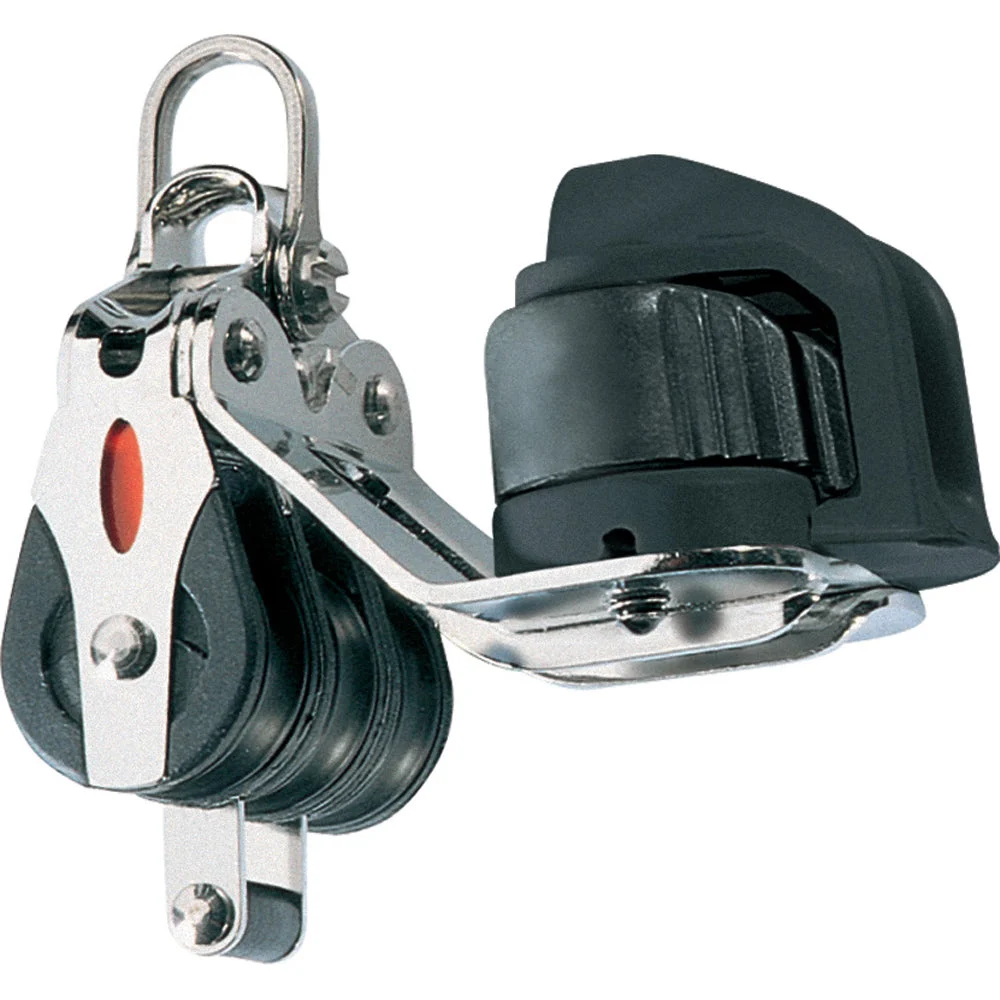

Series 20 Ball Bearing Block – Triple – Becket – Cam Cleat – 2-Axis Shackle Head
Features:

• Low friction
• High static and dynamic load capacity
• Lightweight
• Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
• Two-Way head can be fixed at 0° or 90°

Applications:

• Dinghy control lines
• Dinghy vangs
• Cunninghams
• Traveller controls

Materials:

• Stainless steel ball bearings
• UV Stabilized Acetal sheave
• Grade 316 stainless steel load strap and head fitting
• Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø:20mm(3/4″)
Max. Rope Ø:6mm(1/4″)
PinØ: 4mm(5/32″)
M.W.L.:400kg(880lbs)
B. L.:850kg(1,870lbs)
Weight:122g(4.3oz)
*Line Load through cleat not to exceed 125kg(275lbs)
“RonstanRonstan Ball Bearing blocks have been conceived and engineered for the demands of competitive sailing. Used on boats of all sizes for sheet, fine tune and control line applications they utilise a highly efficient, low friction bearing systems for optimum sheeting and trimming performance.”
SKU: NVN-55143
MPN: RF20332
UPC: 9316800255764
