Description

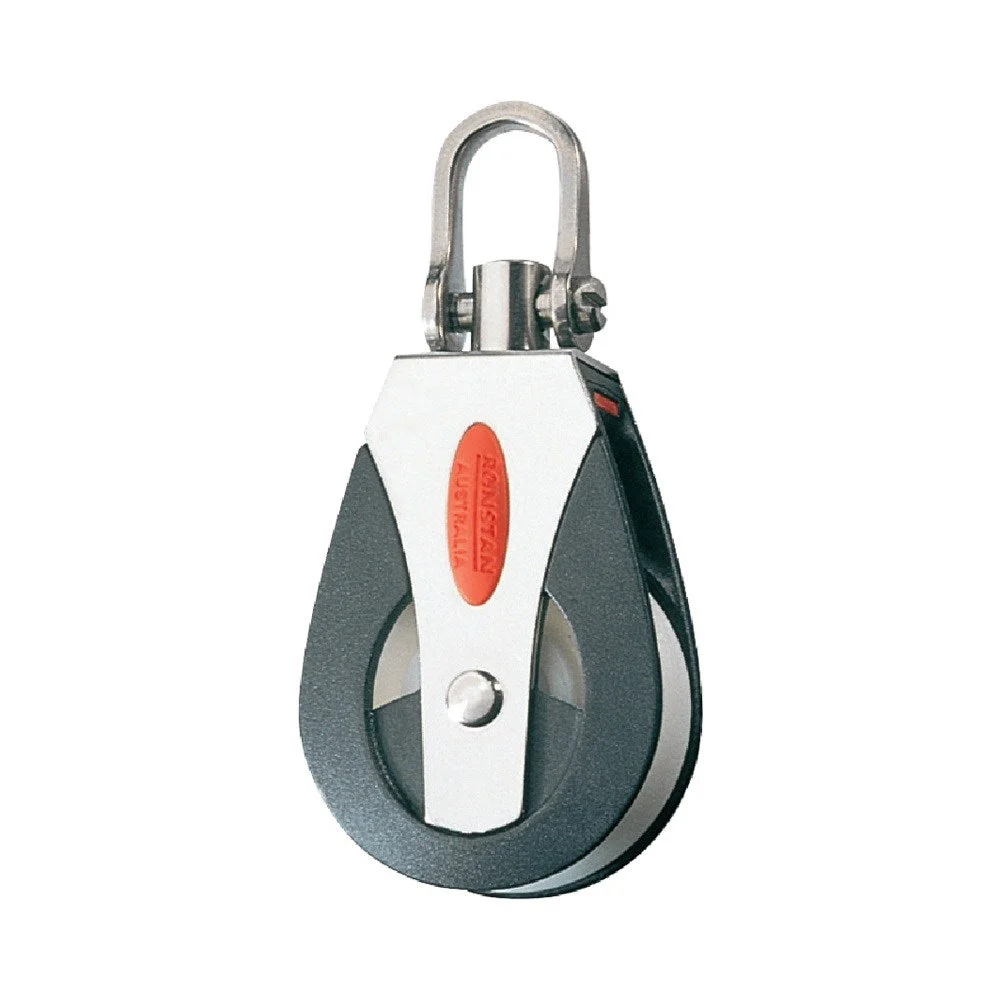

Ronstan Series 40 All Purpose Single Utility Block – Universal Head – RF41100

• Exceptionally high working loads
• Low maintenance, long service life
• Self-lubricating sheave
• Captive Lock universal head
• Slotted pin shackle eliminates fouled lines

Applications

• Mainsheet
• Halyard
• Vang
• Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)

Materials

• UV stabilised Acetal sheaves
• Impact and UV resistant, fibre reinforced Nylon cheeks
• Grade 316 stainless steel bearing race
• Grade 316 stainless steel load strap and head fitting
• Impact and UV resistant, fibre reinforced Nylon cheeks

Specifications

• Sheave Ø: 40 mm
• Max. Rope Ø: 10 mm
• Max. Cable Ø: – mm
• Pin Ø: 5.0 mm
• MWL: 400 kg
• BL: 1000 kg
• Weight: 71 g
