Description

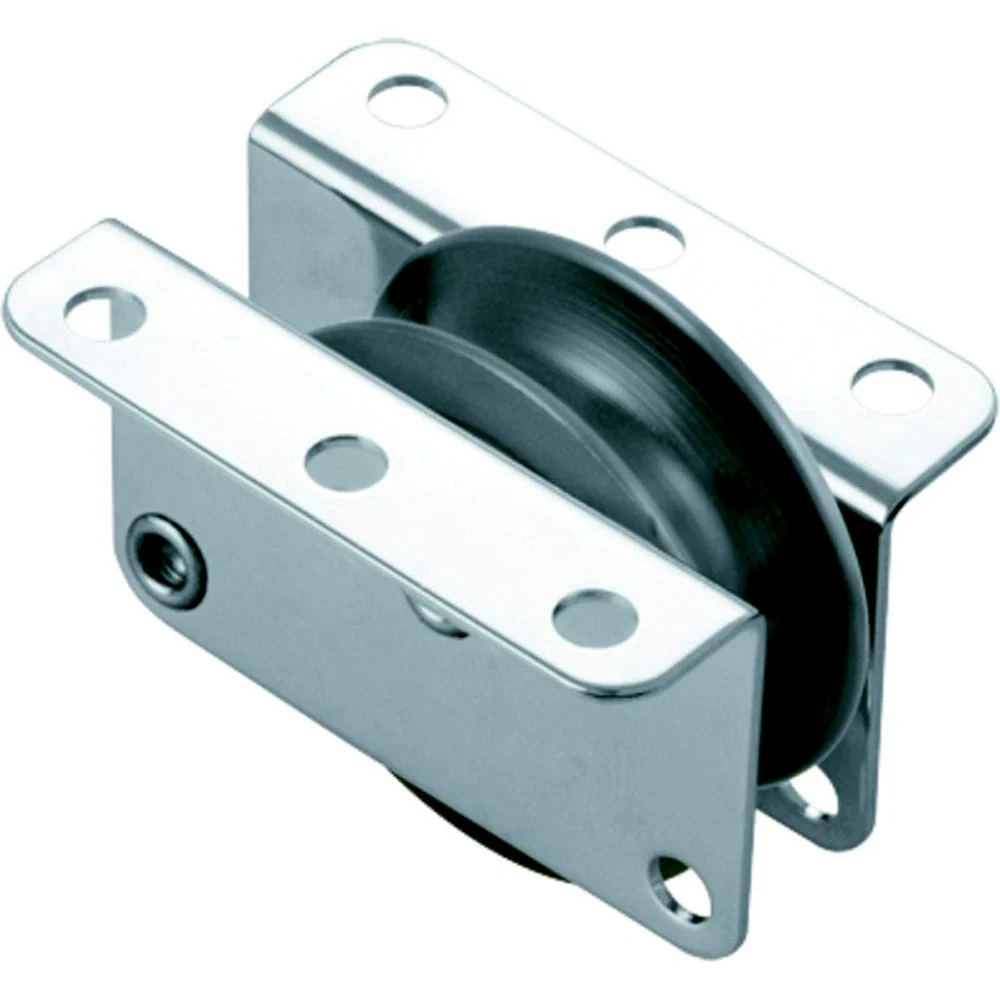

Series 40 High Load Exit Box for Single Rope or Wire
Plain bearing sheaves are ideal for halyards and other applications where high static loads are likely to be encountered
Applications:

• Ideal applications where lines (rope or wire) need to be led through decks, bulkheads or spars minimizing friction and chafing

Materials:

• Nylatron&regl sheave
• Grade 316 Stainless Steel cheeks

Specifications:
Sheave Ø: 40.0mm(1-9/16″)
Max. Rope Ø:10.0mm(3/8″)
Max. Cable Ø: 5.0mm(3/16″)
B.L.: 1,000kg(2,200lbs)
The 40 series high-load outlet box suitable for single rope or steel wire sliding bearing pulleys is very suitable for slings and other applications that may encounter high static loads…
SKU: NVN-55209
MPN: RF41712
UPC: 9316800335121
