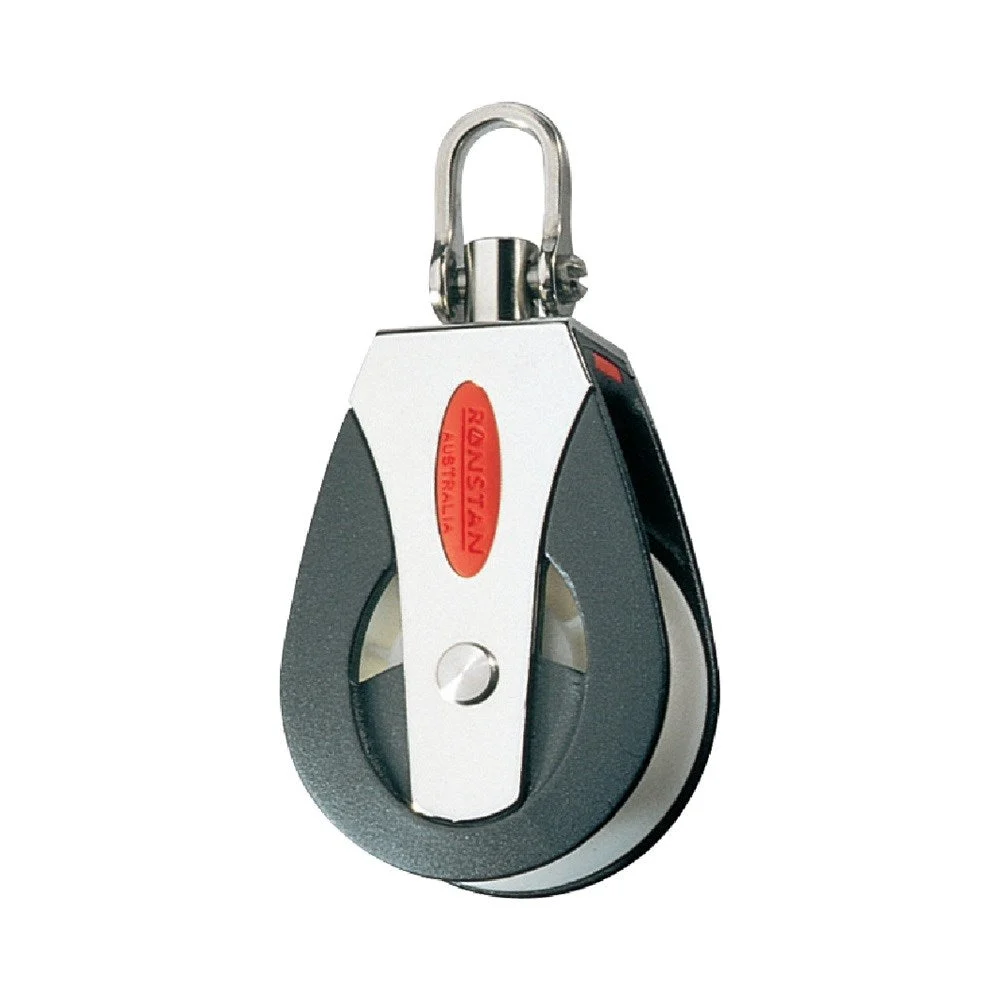

Ronstan Series 50 All Purpose Single Utility Block, Universal Head – RF51100

• Exceptionally high working loads
• Low maintenance, long service life
• Self-lubricating Acetal polymer sheave ensures low friction and extreme durability
• Captive Lock universal head
• Slotted pin shackle eliminates fouled lines

Applications

• Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10 m (33 ft)
• S60 – on boats up to 12 m (40 ft)

Materials

• Grade 316 stainless steel load strap and head fitting
• Impact and UV resistant, fibre reinforced Nylon cheeks

Specifications

• Sheave Ø: 50 mm
• Max. Rope Ø: 12 mm
• Max. Cable Ø: – mm
• Pin Ø: 5.0 mm
• MWL: 750 kg
• BL: 1500 kg
• Weight: 118 g
