Description

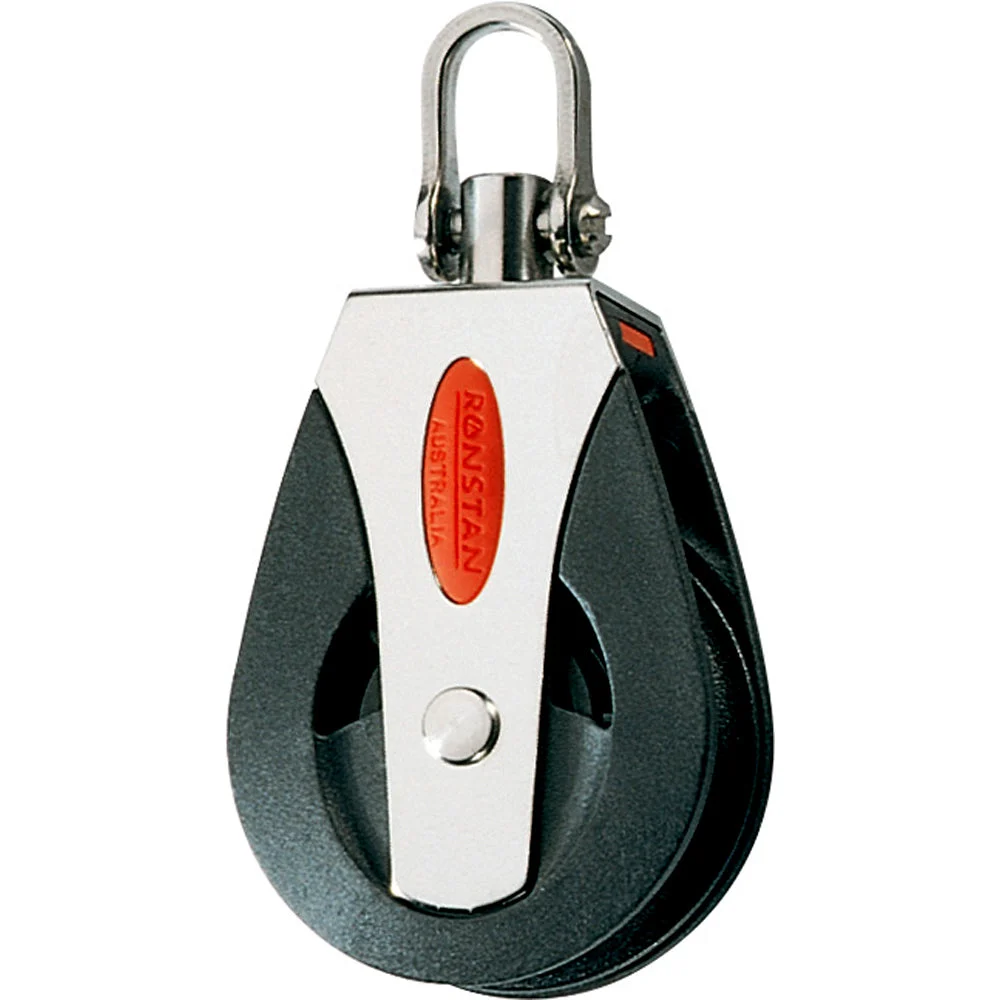

Series 50 High Load Block – Single – Universal Head
Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Features:

• Exceptionally high working loads
• Lightweight
• Cheek cut-outs for easy bearing maintenance
• Suitable for both rope or wire
• Captive Lock™ universal head
• Slotted pin shackle eliminates fouled lines

Applications:

• Mainsheet
• Spinnaker sheets
• Halyards and other primary applications on boats up to 10M(33′)

Materials:

• Nylatron® sheave
• Grade 316 stainless steel load strap and head fitting
• Impact and U.V. resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø:50mm(2″)
Max. Rope Ø: 12mm(1/2″)
Max. Cable Ø:5mm(3/16″)
Max. Pin Ø: 5mm(3/16″)
M.W.L.:800kg(1,760lbs)
B. L.:1,500kg(3,310lbs)
Weight:117g(4.1oz)
The 50 series high-load block-single-head-universal head is ideal for high-load applications. Wear-resistant pulley material, lightweight,
SKU: NVN-55247
MPN: RF50100HL
UPC: 9316800241453
