Description

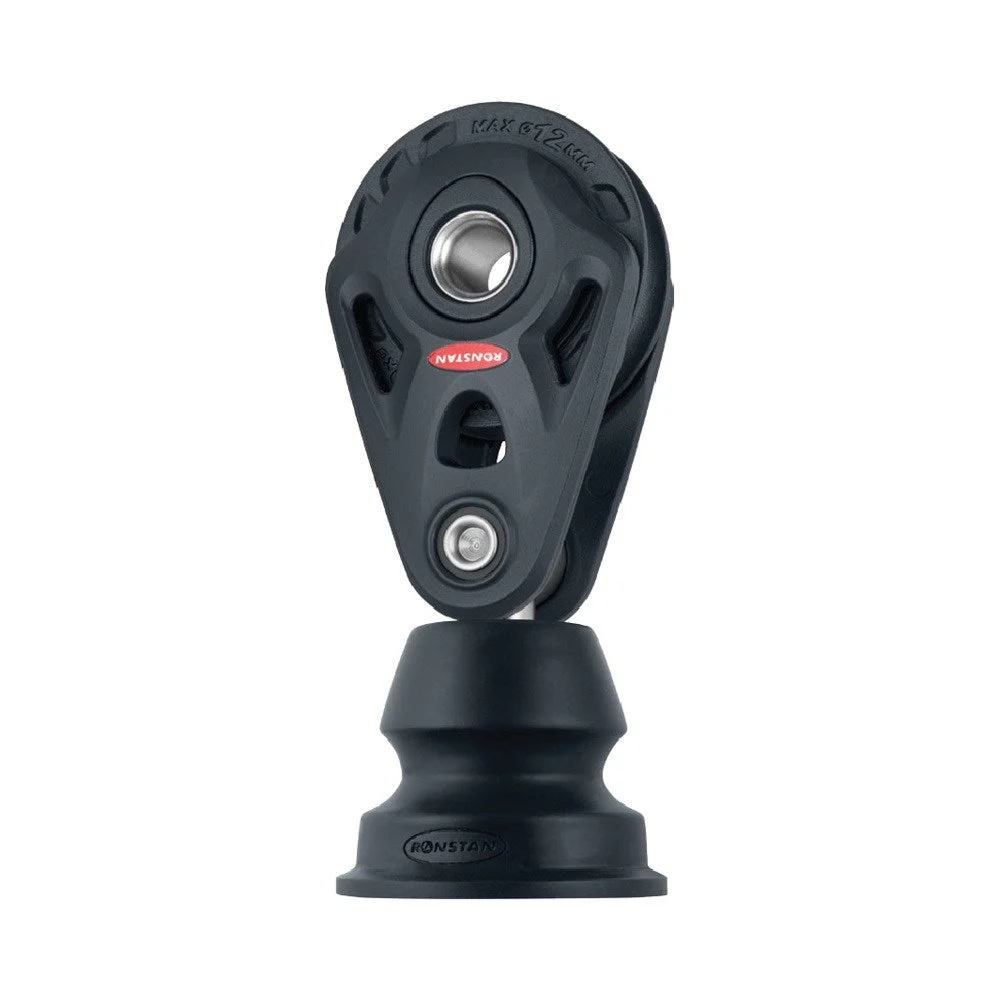

Ronstan Series 60 Ball Bearing Stand-up Core Block, Swivelling – RF64140

• Class leading performance and sleek, contemporary styling
• Excellent dynamic and high static load performance
• Less than half the friction of the nearest competitor
• Swivelling head post for full 3-axis articulation
• Strong precision cast padeye base
• Resilient rubber stand-up boot prevents clatter & block falling down when not loaded
• Central hub hole can be used as a becket take-off or tie-up point
• Mount with 4 x 6 mm (1/4″) fasteners (not supplied)

Applications

• Ideal for mainsheet, halyard and spinnaker sheet applications on boats to 11 m (36 ft)
• Various control line applications on larger yachts.
• Alloy sheave models are available for use with wire

Materials

• Sheaves: UV stabilised Acetal
• Cheek plates & cleat arms: Aluminium alloy
• Ball Bearings: High compression strength carbon black Acetal
• Shackle, post & hub: Grade 316 stainless steel
• Padeye & snap shackle: Grade 15-5PH stainless steel
• Snap shackle: Grade 15-5PH investment cast stainless steel
• Cleat: Fibre reinforced composite
• Post & hub: Grade 316 stainless steel.
• Padeye: Grade 15.5PH stainless steel

Specifications

• Sheave Ø: 60 mm
• Max. Rope Ø: 12 mm
• Max. Cable Ø: – mm
• Pin Ø: – mm
• MWL: 1000 kg
• BL: 2000 kg
• Weight: 372 g
