Description

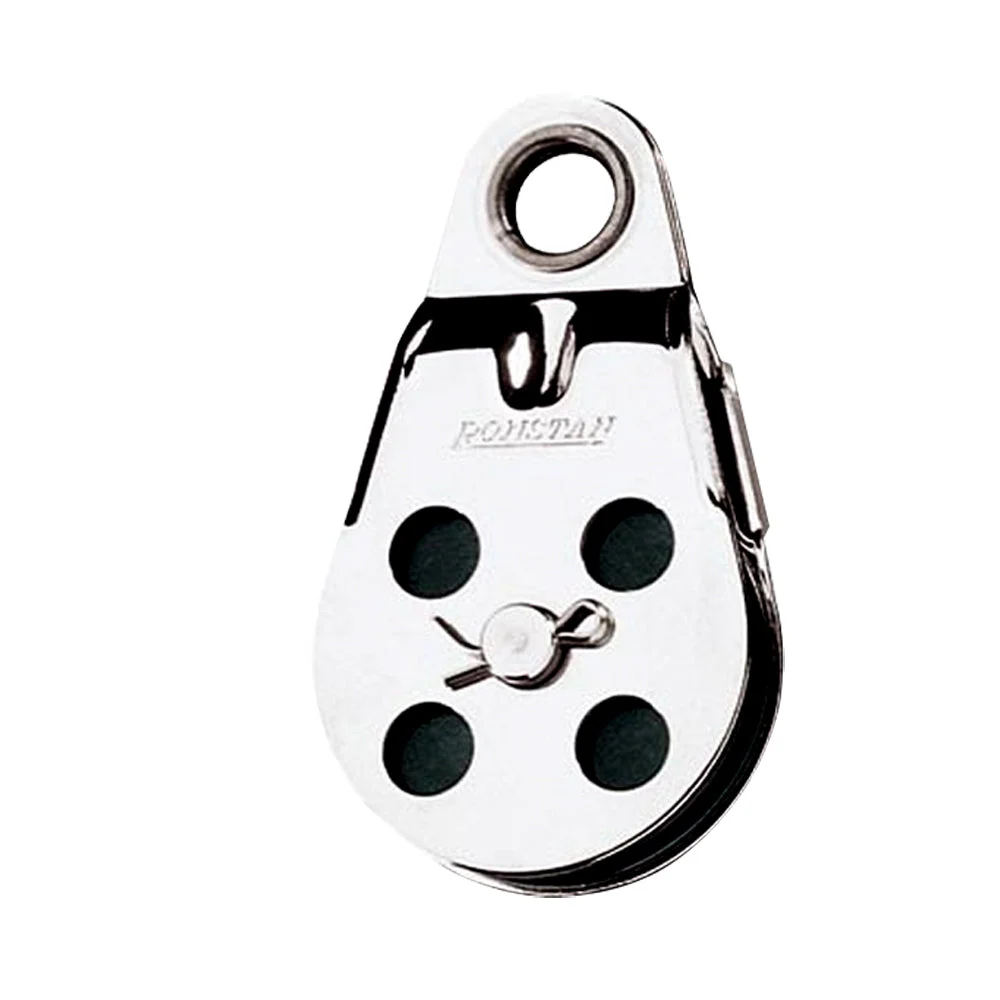

Wire Block – Ferrule Top w/Removable Nylatron® Sheave – 45mm(1-3/4″) Sheave Diamter
Wire blocks have purpose designed narrow sheaves and grooves.Removal sheave for easy fitting and without cutting the wire termination
Features:

• Flared cheeks to minimise chafing
• Removable sheaves
  Applications:
  Wire blocks suit halyards, vang and backstay applications
  Materials:
  • Grade 316 stainless steel cheeks
  • Nylatron® sheave

  Specifications:
  Sheave Ø: 45mm(1-3/4″)
  Max. Cable Ø: 6mm(1/4″)
  M.W.L:850kg(1,870lbs)
  B.L.: 1,700kg(3,740lbs)
  Weight: 80kg(2.8oz)
  The terms “pulley” and “pulley” are interchangeable. Suitable for wires from 3/32″ to 5/32″. These high-load wire blocks are used for slings, back supports, boom trucks and many other wires…
  SKU: NVN-55034
  MPN: RF104
  UPC: 9316800054091
